Geometry

  s m l
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Top Tube (actual) 619 486 664
Seat Tube C-T 521 711 619
Seat Tube C-C 486 437 549
Head Angle 64 87 80
Seat Angle 75,5 75,5 75,5
Head Tube 121 134 134
Chainstay 459 458 330
Wheelbase 1032 954 1152
BB Drop 53 61 61
Headset 1 1/8 - 1 1/2 1 1/8 - 1 1/2 1 1/8 - 1 1/2
Seat Clamp 27,2 27,2 27,2
Bike Weight 1575
Data Source Manufacturer Manufacturer Manufacturer

Measurements are in millimeters and degrees.

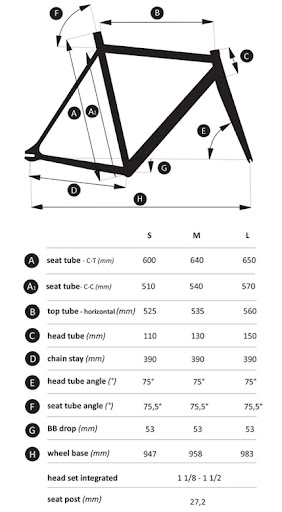

Image showing geometry measurements
