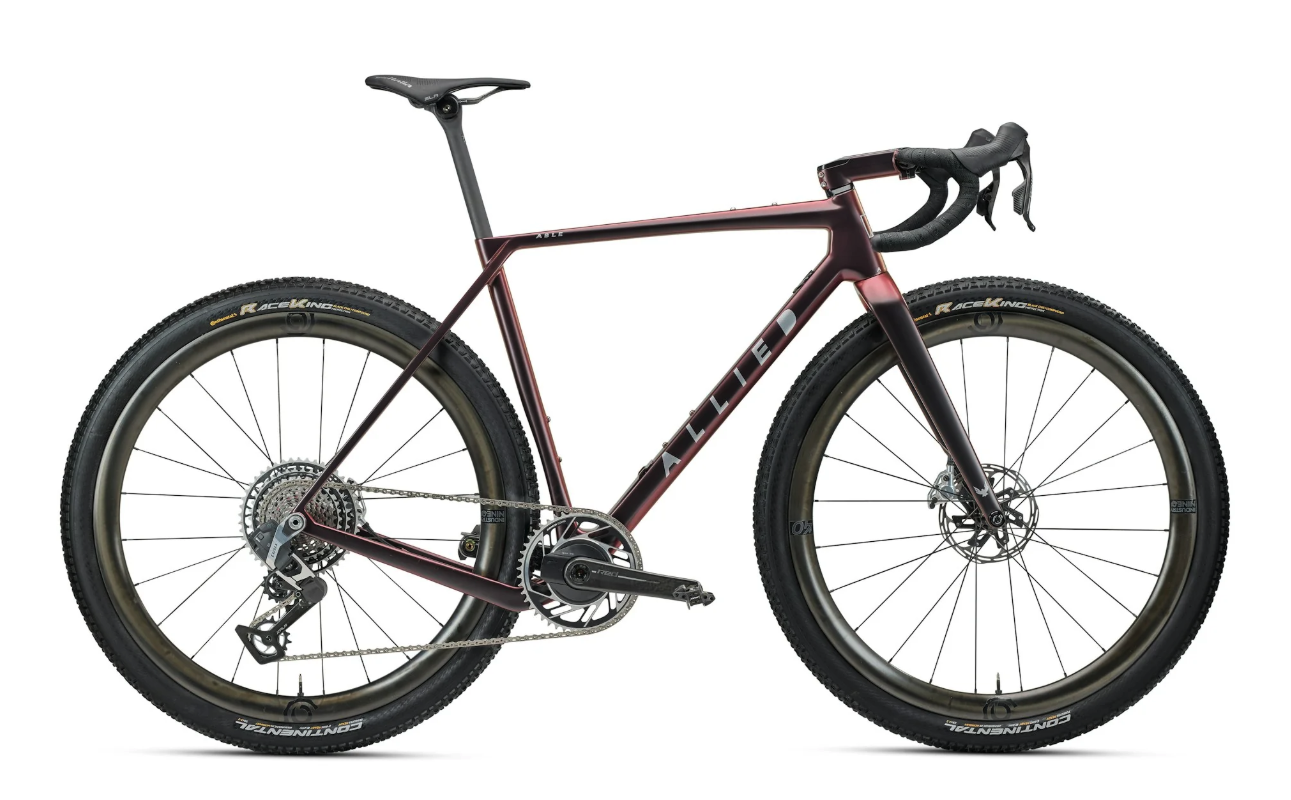

Allied Cycle Works Able 2025


c

Geometry

  48 52 54 56 58 61
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 385 426 373 457 443 389
Stack 623 566 513 599 662 713
Top Tube (effective) 423 491 649 630 491 484
Seat Tube C-T 390 424 408 522 448 608
Head Angle 69 80 61 58 67 70
Seat Angle 81 74 76 88 70 80
Head Tube 103 88 94 149 179 170
Chainstay 402 398 480 458 393 395
Wheelbase 858 1225 1189 1084 1076 1068
Front Centre 605 497 571 598 678 732
Standover 778 898 863 791 869 908
BB Drop 67 71 78 69 64 84
Fork Rake / Offset 47 59 54 57 62 55
Fork Length (A2C) 355 354 411 357 404 463
Frame Weight 921 843 1118 1057 1136
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
