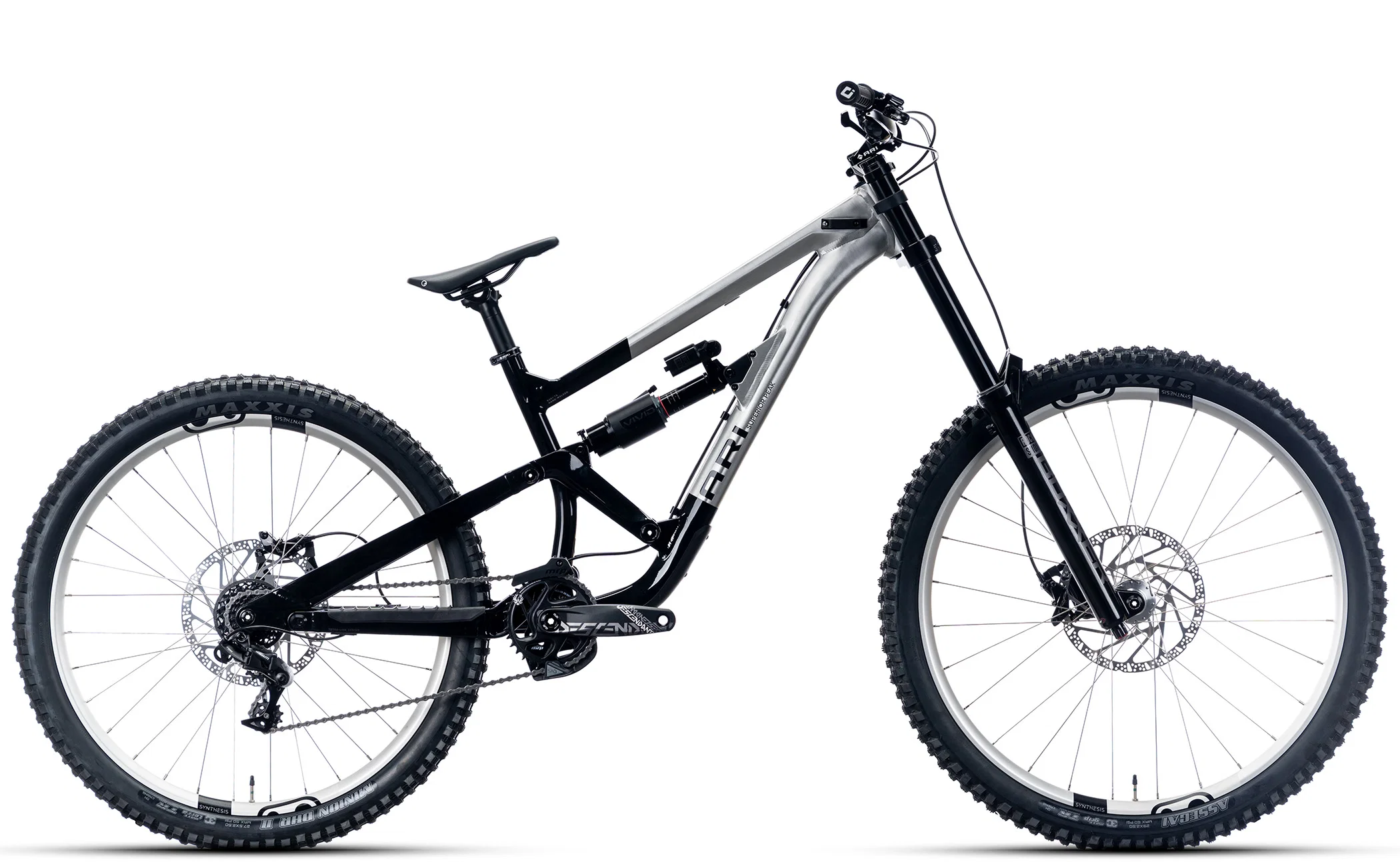

Geometry

  S1 S2 S3
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 359 440 488
Stack 717 553 682
Top Tube (effective) 485 657 754
Seat Tube C-C 429 350 391
Head Angle 68 65 74
Seat Angle 75 68 78
Head Tube 131 94 108
Chainstay 425 515 389
Wheelbase 1186 1168 1140
Standover 687 667 643
BB Drop 21 22 22
BB Height 425 305 382
Fork Rake / Offset 50 43 47
Fork Length (A2C) 610 613 580
Axle Spacing 12x148 12x148 12x148
Front Travel 200mm 200mm 200mm
Rear Travel 200mm 200mm 200mm
Shock Size 250x75 250x75 250x75
Headset ZS56/ZS56 ZS56/ZS56 ZS56/ZS56
Data Source Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
