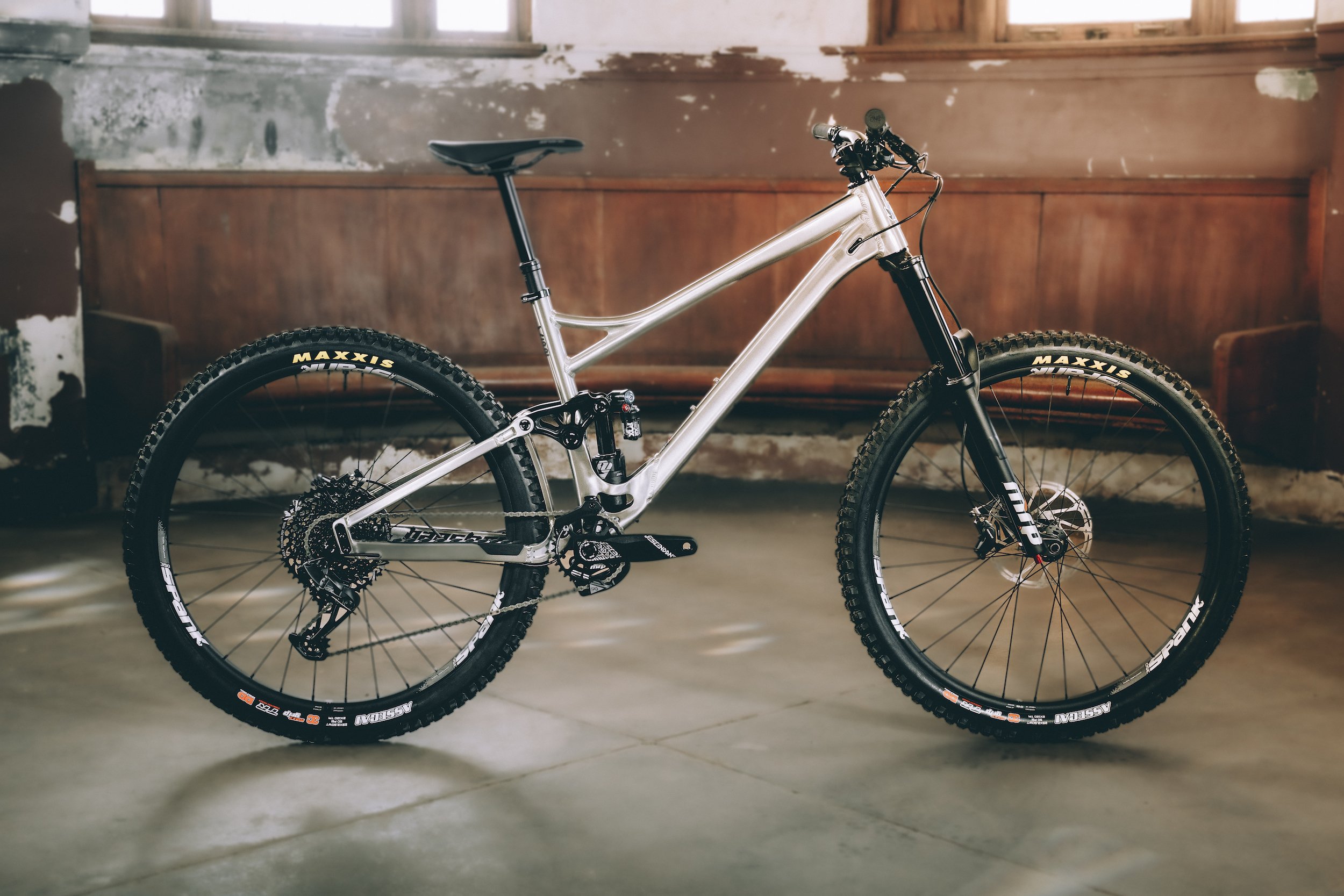

Geometry

  M L XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 406 438 519
Stack 588 550 701
Top Tube (effective) 550 666 573
Head Angle 75 68 54
Seat Angle 79 63 82
Head Tube 114 114 135
Chainstay 377 529 474
Wheelbase 1345 1440 1163
Standover 840 850 675
BB Drop 29 28 21
BB Height 332 392 389
BB Type 73mm BSA 73mm BSA 73mm BSA
Fork Rake / Offset 42 43 47
Seatpost Diameter 26 34 28
Axle Spacing Compact/Long/142x12/148x12 Compact/Long/142x12/148x12 Compact/Long/142x12/148x12
Wheel Size 29 or Mullet 29 or Mullet 29 or Mullet
Tyre Max Width 29x2.5, 27x2.8 (Compact) OR 29x2.8 (Long) 29x2.5, 27x2.8 (Compact) OR 29x2.8 (Long) 29x2.5, 27x2.8 (Compact) OR 29x2.8 (Long)
Max Post Insertion 232 223 280
Front Travel 160-180 160-180 160-180
Rear Travel 169 155 143
Shock Size 205x65 205x65 205x65
Rider Height 5'7"-6'0" (170-183cm) 5'11"-6'4" (180-193cm) >6'3" (>190cm)
Headset 1-1/8" ZS, 1-1/2" ZS 1-1/8" ZS, 1-1/2" ZS 1-1/8" ZS, 1-1/2" ZS
Seat Clamp 31 32 39
Data Source Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
