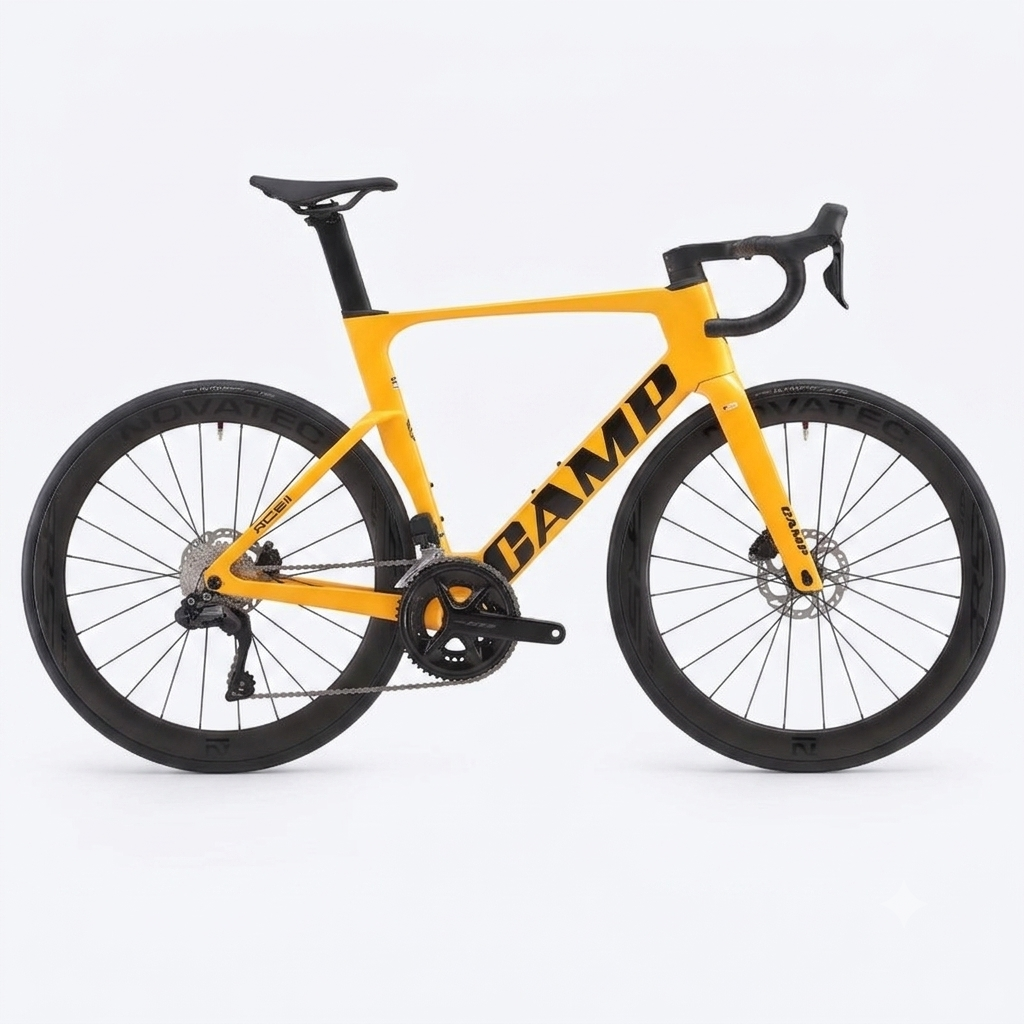

CAMP ACE II 2025


c

Geometry

  440 460 490 520 540
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 328 365 351 359 471
Stack 570 555 491 630 681
Top Tube (effective) 513 426 636 637 526
Top Tube (actual) 536 594 504 650 509
Seat Tube C-T 449 424 401 434 612
Head Angle 69 72 85 77 85
Seat Angle 83 64 84 66 84
Head Tube 122 111 130 126 178
Chainstay 399 431 457 408 349
Wheelbase 842 1045 1052 785 871
Front Centre 553 671 649 505 692
Standover 735 736 817 923 831
BB Drop 65 78 70 80 71
Fork Length (A2C) 338 400 358 389 376
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
