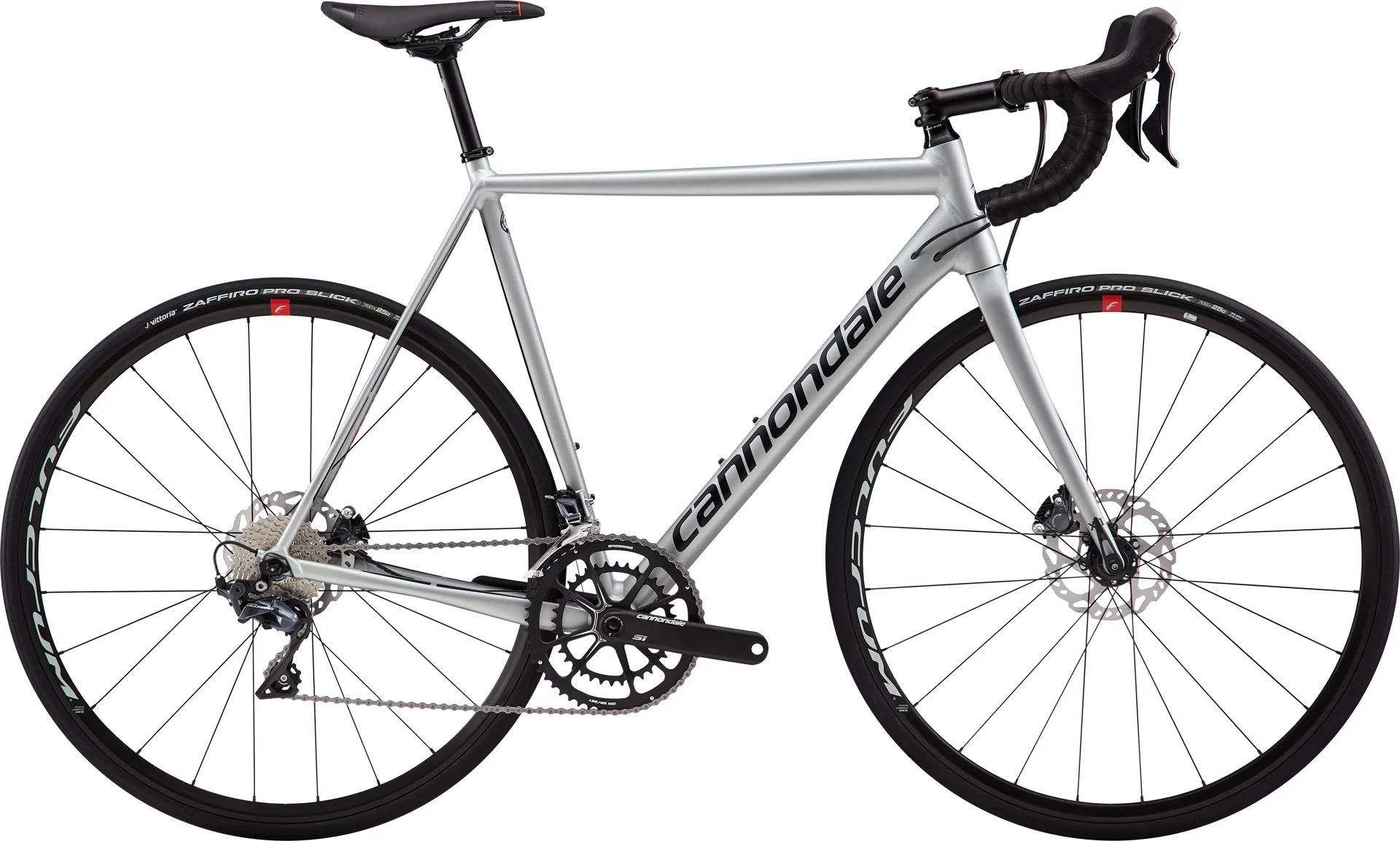

Cannondale CAAD 12 2016-2018


c

Geometry

  48 50 52 54 56 58 60 63
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 438 379 335 386 390 388 471 426
Stack 492 539 452 517 463 525 594 569
Top Tube (effective) 588 555 524 638 537 468 608 508
Seat Tube C-T 623 644 595 524 586 638 697 543
Head Angle 69 68 61 75 83 76 62 66
Seat Angle 66 75 66 85 66 77 71 60
Head Tube 108 103 137 136 168 192 182 251
Chainstay 369 429 429 362 425 359 354 407
Wheelbase 861 1102 968 906 972 975 943 865
Front Centre 617 501 523 603 703 618 666 631
Standover 745 860 627 867 801 851 698 753
BB Drop 84 60 76 63 71 56 71 61
BB Height 304 273 314 314 255 319 242 239
BB Type BB30 BB30 BB30 BB30 BB30 BB30 BB30 BB30
Fork Rake / Offset 43 50 48 53 47 42 52 51
Trail 65 61 51 62 57 47 59 61
Seatpost Diameter 25 27 23 25 25 20 20 30
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
