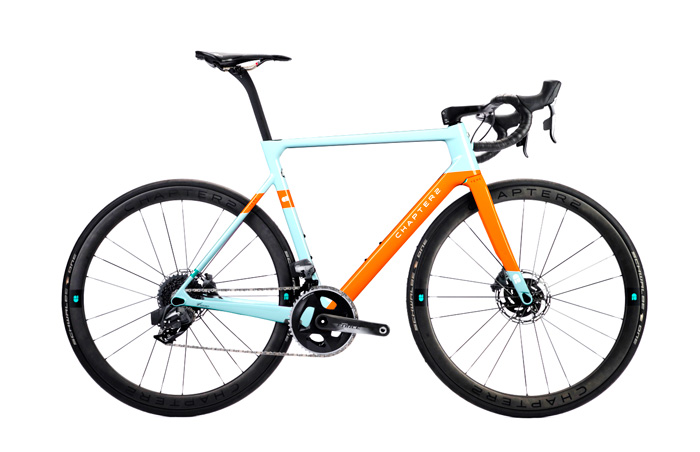

Chapter2 TERE Disc Ultegra Di2 Disc Cosmic SL45 2023


Geometry

  XS S M L XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 349 439 396 329 327
Stack 550 502 484 646 660
Top Tube (actual) 487 425 644 471 647
Seat Tube C-C 388 366 426 477 355
Seat Tube (effective) 462 484 572 522 481
Head Angle 66 68 86 86 62
Seat Angle 59 59 65 86 62
Head Tube 120 140 168 145 166
Wheelbase 952 1046 1025 1099 1157
Front Centre 509 557 487 562 719
Standover 685 751 833 698 717
BB Drop 59 76 72 62 68
Fork Rake / Offset 53 63 48 40 47
Tyre Max Width 31 23 28 25 28
Seatpost Offset 16 17 19 20 18
Stem Length 65 82 105 118 103
Rider Height <170 165-175 170-180 175-185 >180
Data Source Online Review Online Review Online Review Online Review Online Review

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
