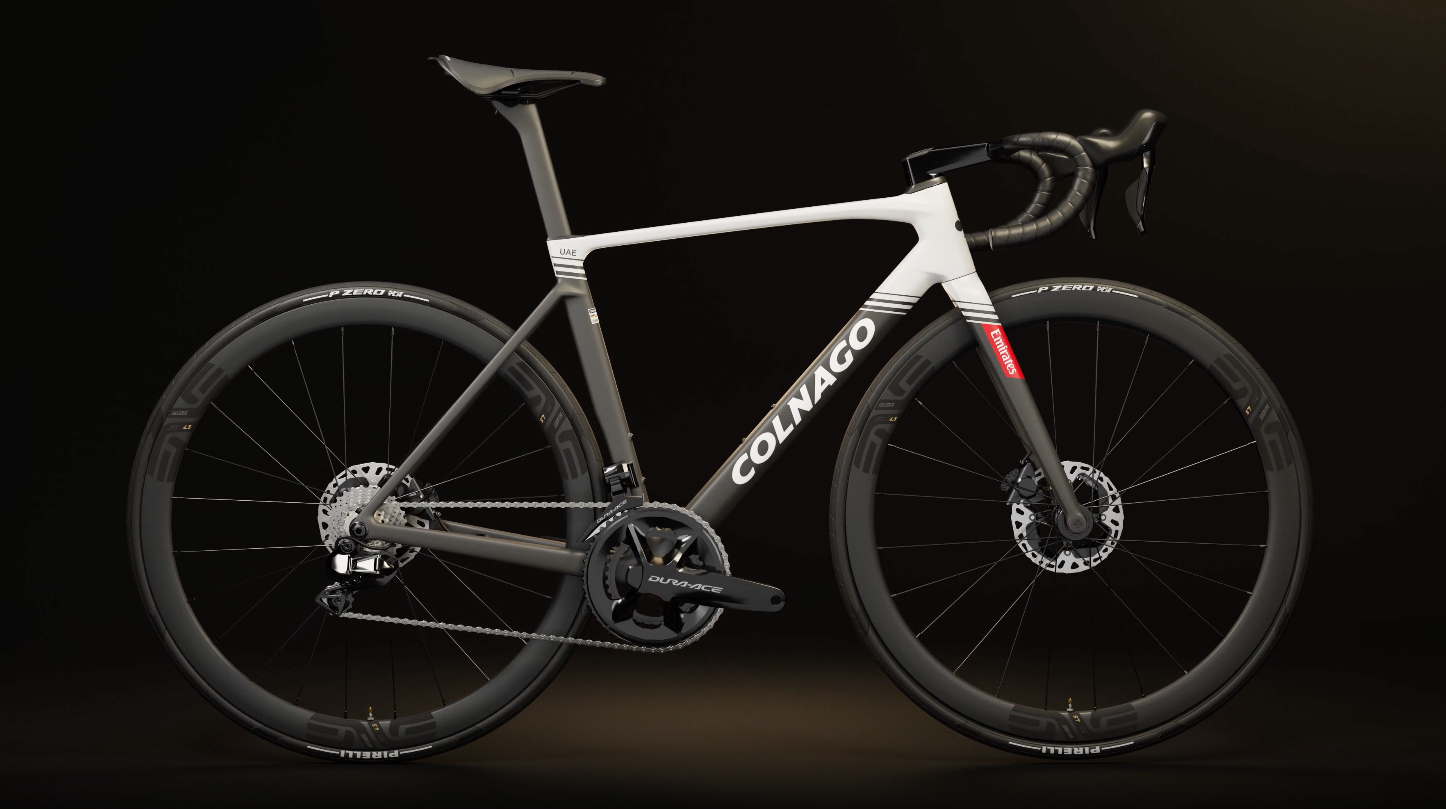

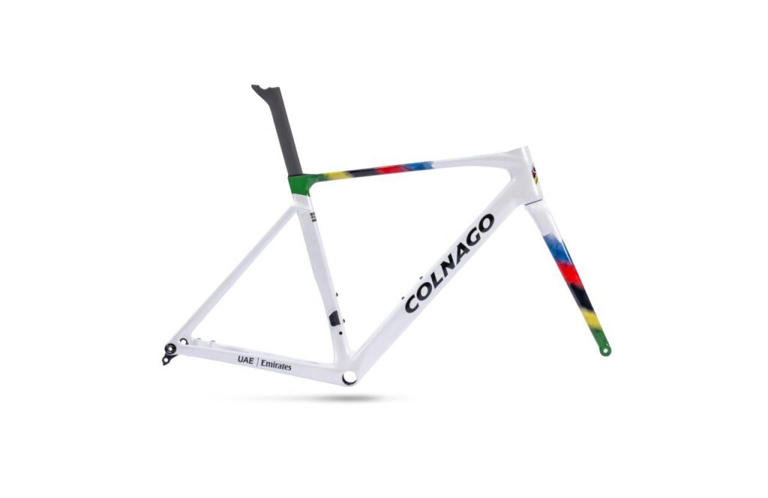

Geometry

  420 455 485 510 530 550 570
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 370 433 336 328 445 475 341
Stack 596 578 627 504 602 691 549
Top Tube (effective) 444 545 619 567 479 593 614
Seat Tube C-T 361 464 421 471 555 593 510
Head Angle 69 74 79 68 80 86 60
Seat Angle 70 85 68 65 67 78 59
Head Tube 83 100 107 172 148 171 200
Chainstay 403 355 385 326 364 348 438
Front Centre 527 595 680 571 685 632 538
Standover 690 781 775 744 934 908 851
BB Drop 84 87 77 79 65 81 86
Fork Rake / Offset 51 48 50 42 34 36 34
Trail 82 70 48 57 52 56 65
Fork Length (A2C) 379 353 384 395 381 379 374
Data Source Manufacturer whitepaper Manufacturer whitepaper Manufacturer whitepaper Manufacturer whitepaper Manufacturer whitepaper Manufacturer whitepaper Manufacturer whitepaper

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
