Geometry

  S M L XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 472 415 580 606
Stack 593 679 667 709
Top Tube (effective) 476 630 713 630
Seat Tube C-T 413 423 532 492
Head Angle 53 60 75 66
Seat Angle 79 82 64 77
Head Tube 121 114 125 130
Chainstay 457 506 416 498
Wheelbase 1407 1207 1295 1134
BB Drop 18 22 17 17
BB Height 282 401 333 383
Fork Length (A2C) 635 482 609 589
Rear Travel 170 179 131 153
Data Source Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

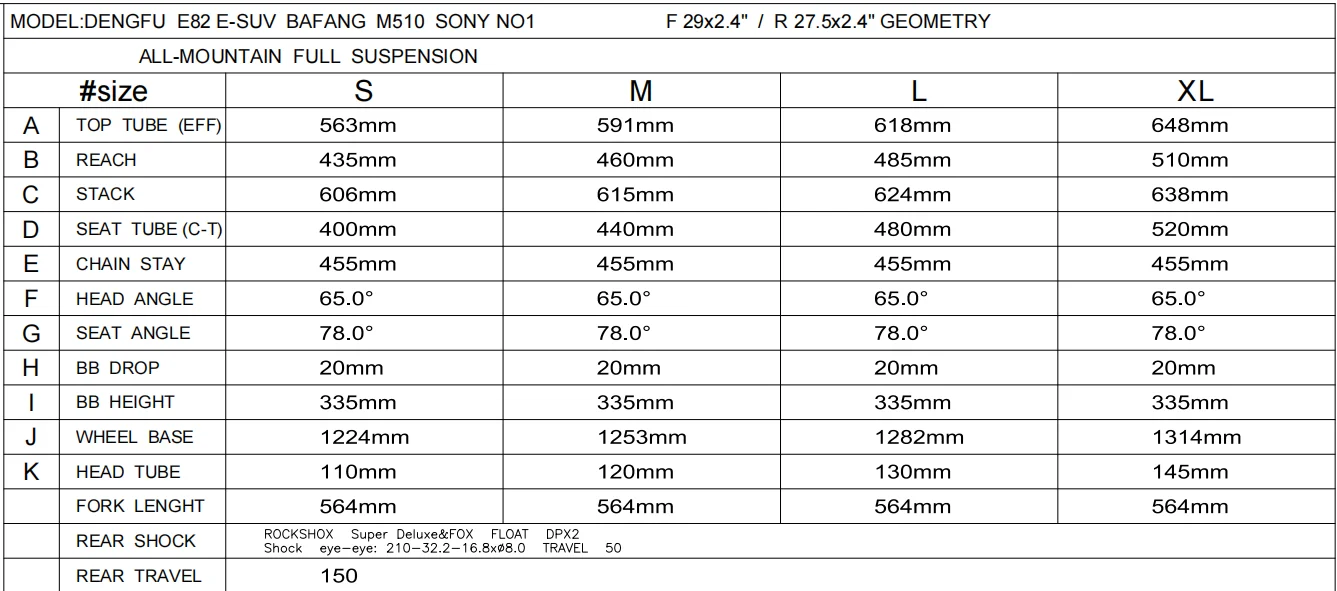

Image showing geometry measurements
