Geometry

  48 50 53 56 59
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 398 430 329 391 438
Stack 553 558 509 623 582
Top Tube (effective) 625 478 592 504 516
Seat Tube C-T 508 548 565 564 615
Head Angle 71 66 76 64 72
Seat Angle 85 61 73 84 66
Head Tube 118 116 134 204 243
Chainstay 506 397 374 356 469
Wheelbase 995 1070 906 1184 1144
Front Centre 564 681 606 532 515
BB Drop 60 60 75 68 55
Fork Rake / Offset 42 45 43 49 50
Trail 57 64 60 52 48
Fork Length (A2C) 393 447 330 415 401
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

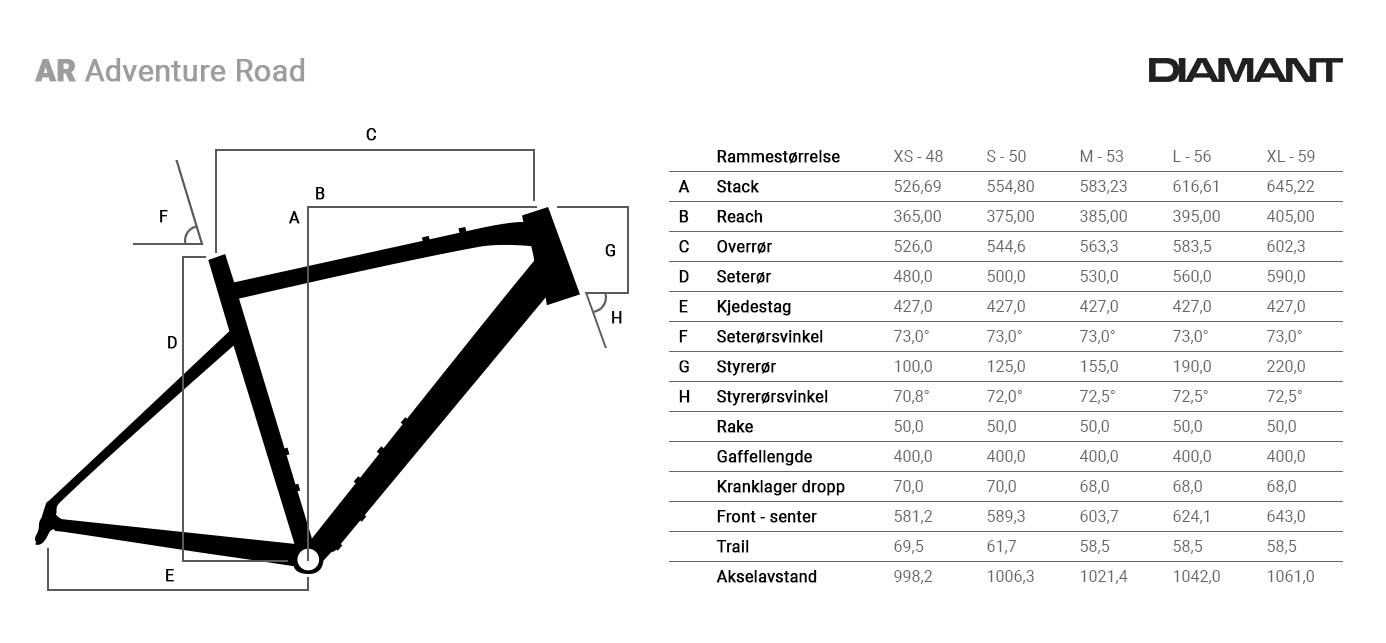

Image showing geometry measurements
