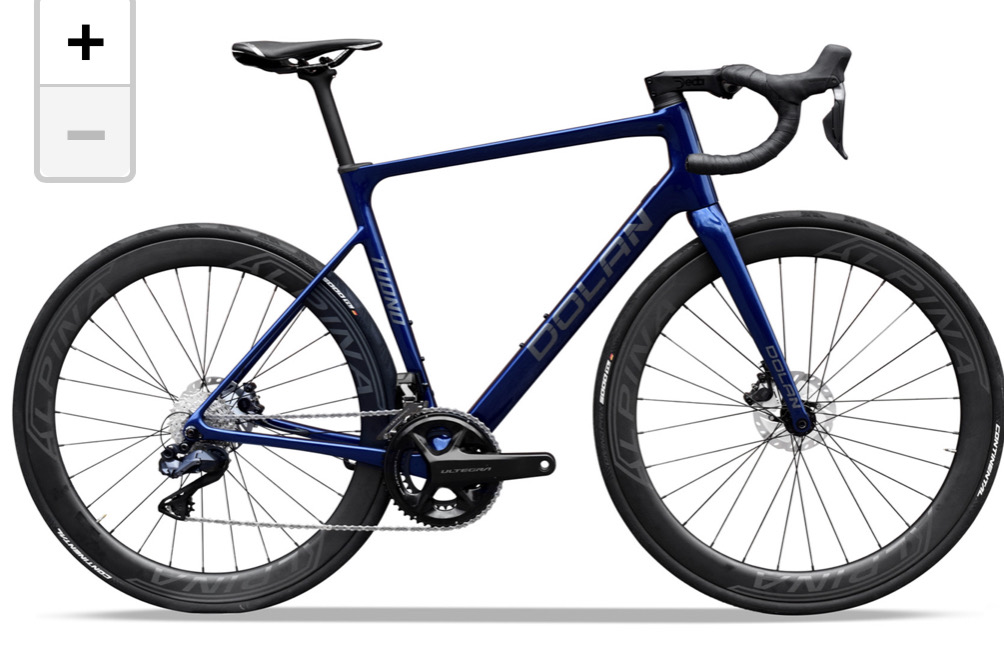

Dolan Tuono Carbon Disc 2020
Prove Humanity: Please click here to start.
You should not have to do this more than once.
If you continue to see this message, please email hello@[the site's address] for support.
Geometry
| Add to Compare |
| Reach |
| Stack |
| Top Tube (effective) |
| Seat Tube C-T |
| Head Angle |
| Seat Angle |
| Head Tube |
| Chainstay |
| Wheelbase |
| Front Centre |
| BB Type |
| Fork Rake / Offset |
| Fork Length (A2C) |
| Seatpost Diameter |
| Wheel Size |
| Tyre Max Width |
| Stem Length |
| Crank Length |
| Rider Height |
| Rider Inside Leg |
| Headset |
| Frame Weight |
| Data Source |
| M | |
|---|---|
| Add to Compare | |
| Reach | 380.8mm |
| Stack | 571.1mm |
| Top Tube (effective) | 546mm |
| Seat Tube C-T | 490mm |
| Head Angle | 72deg |
| Seat Angle | 73.9deg |
| Head Tube | 157mm |
| Chainstay | 415mm |
| Wheelbase | 998.5mm |
| Front Centre | 594.5mm |
| BB Type | BB86 PF |
| Fork Rake / Offset | 45mm |
| Fork Length (A2C) | 343 |
| Seatpost Diameter | 27.2mm |
| Wheel Size | 700c |
| Tyre Max Width | 32mm |
| Stem Length | 100mm |
| Crank Length | 170mm |
| Rider Height | 1614 |
| Rider Inside Leg | 777 |
| Headset | 1 1/8” |
| Frame Weight | 9 |
| Data Source | Manufacturer & Measured Own Bike |
Select
two sizes then 'Compare'
two sizes then 'Compare'Measurements are in millimeters and degrees.
