Geometry

  XXS XS S M L XL XXL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 304 326 356 397 376 424 343
Stack 481 575 565 450 576 568 490
Top Tube (effective) 565 614 579 537 548 570 671
Seat Tube C-T 438 419 579 540 567 518 568
Head Angle 59 65 63 79 67 74 71
Seat Angle 82 64 73 75 60 85 76
Head Tube 90 98 118 149 153 208 200
Chainstay 358 408 450 456 488 448 461
Wheelbase 1001 778 1147 871 1158 969 1147
Front Centre 625 475 554 693 508 526 560
BB Drop 79 78 55 81 77 59 63
Fork Length (A2C) 360 402 426 382 394 384 339
Data Source Retailer Retailer Retailer Retailer Retailer Retailer Retailer

Note: Professional

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

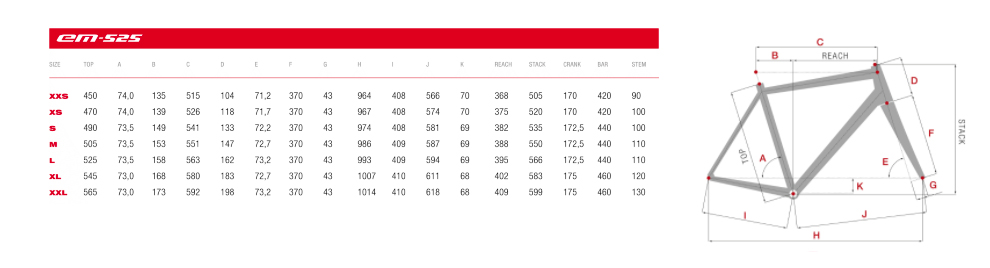

Image showing geometry measurements
