Geometry

  44(XS) 46(S) 49(M) 52(L) 54(XL) 56(2XL)
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 413 424 437 352 337 444
Stack 570 568 422 479 556 535
Top Tube (effective) 544 569 581 569 590 436
Seat Tube C-T 524 377 414 407 490 633
Seat Angle 65 85 67 79 65 78
Head Tube 115 112 123 148 125 132
Chainstay 485 389 398 430 409 425
Rider Height 155-165 163-172 170-177 175-182 180-185 182-190
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

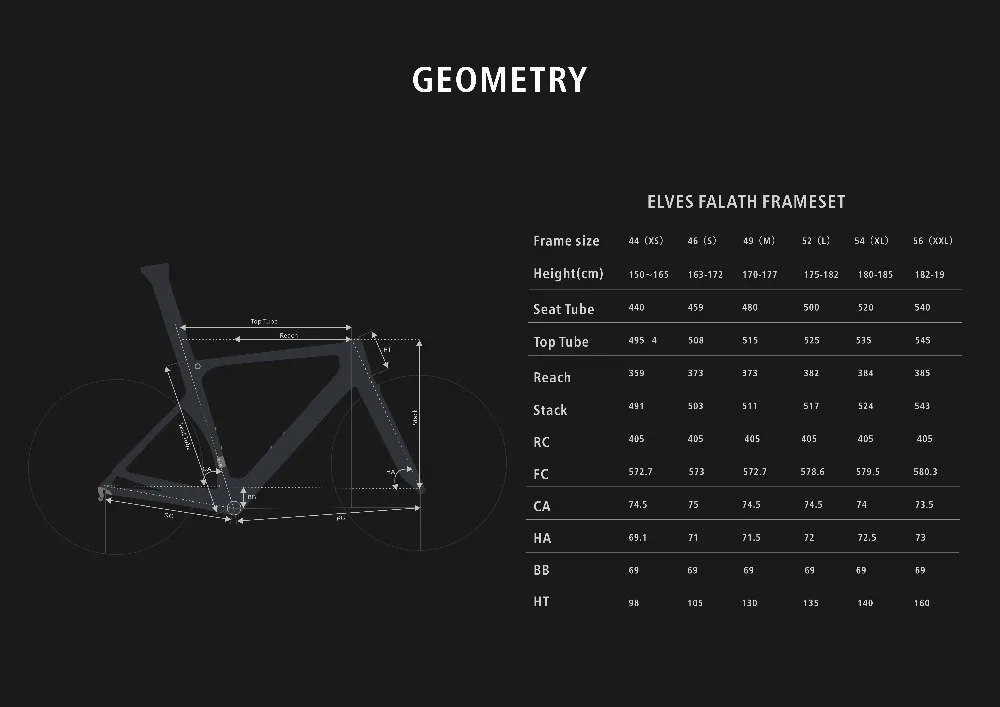

Image showing geometry measurements
