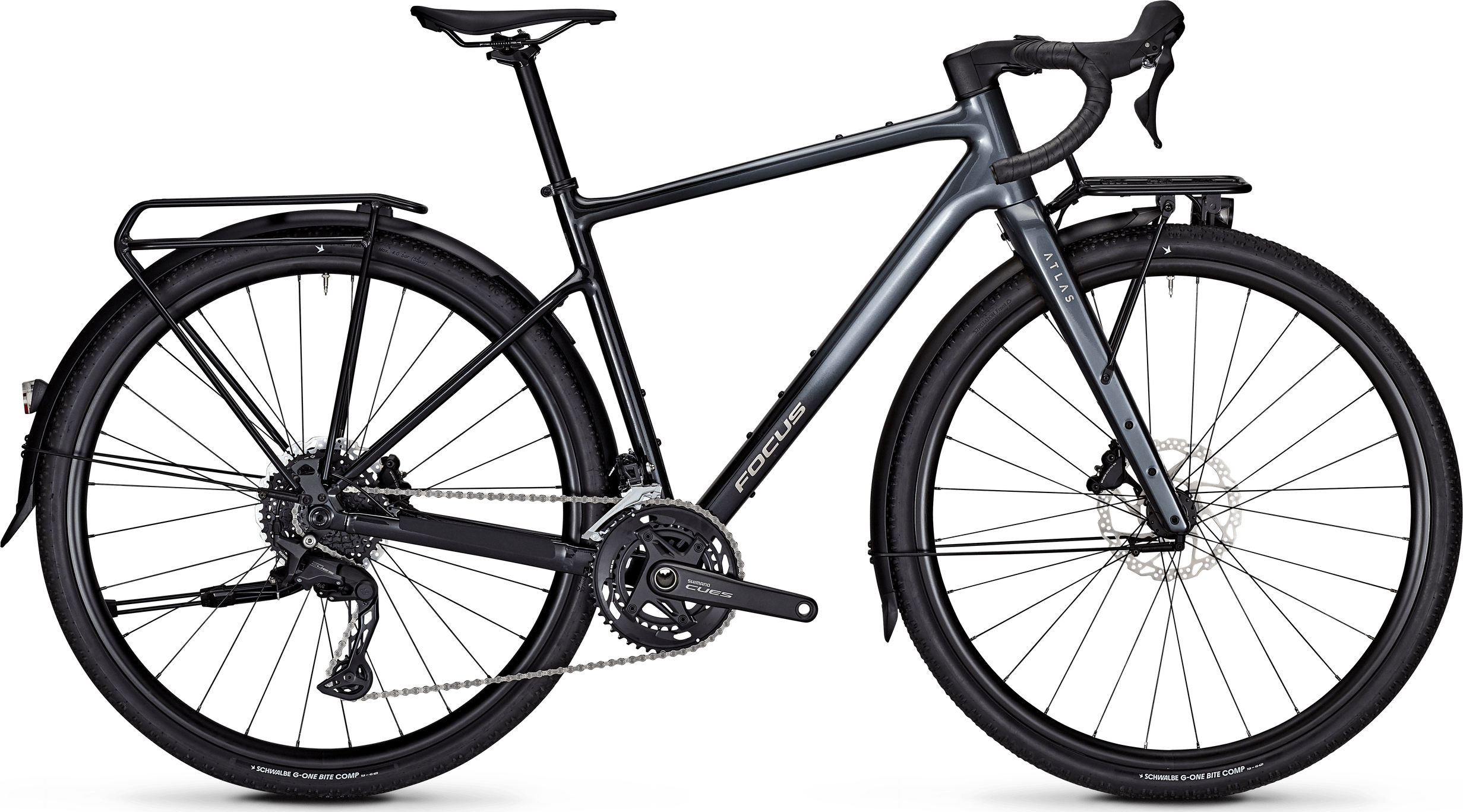

Focus Atlas 6.8 FQP 2026


c

Geometry

  XS S M L XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 429 423 348 333 489
Stack 450 513 532 576 647
Top Tube (effective) 520 546 505 652 560
Seat Tube C-T 527 516 413 573 466
Head Angle 79 58 57 77 61
Seat Angle 67 82 61 72 83
Head Tube 123 140 154 136 225
Chainstay 481 448 395 463 425
Wheelbase 1166 1049 1217 1251 1047
Standover 790 798 899 693 721
BB Drop 85 80 80 72 89
BB Type Shimano, BSA 24 mm Shimano, BSA 24 mm Shimano, BSA 24 mm Shimano, BSA 24 mm Shimano, BSA 24 mm
Fork Length (A2C) 368 414 471 424 397
Seatpost Diameter 24 31 29 27 26
Axle Spacing 142x12 mm 142x12 mm 142x12 mm 142x12 mm 142x12 mm
Seatpost Length 390 318 352 349 343
Seatpost Offset 50 53 46 53 48
Handlebar Width 347 452 424 471 494
Stem Length 78 82 83 85 106
Stem Angle -8° -8° -8° -8° -8°
Crank Length 157 197 187 204 200
Seat Clamp -15 mm -15 mm -15 mm -15 mm -15 mm
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
