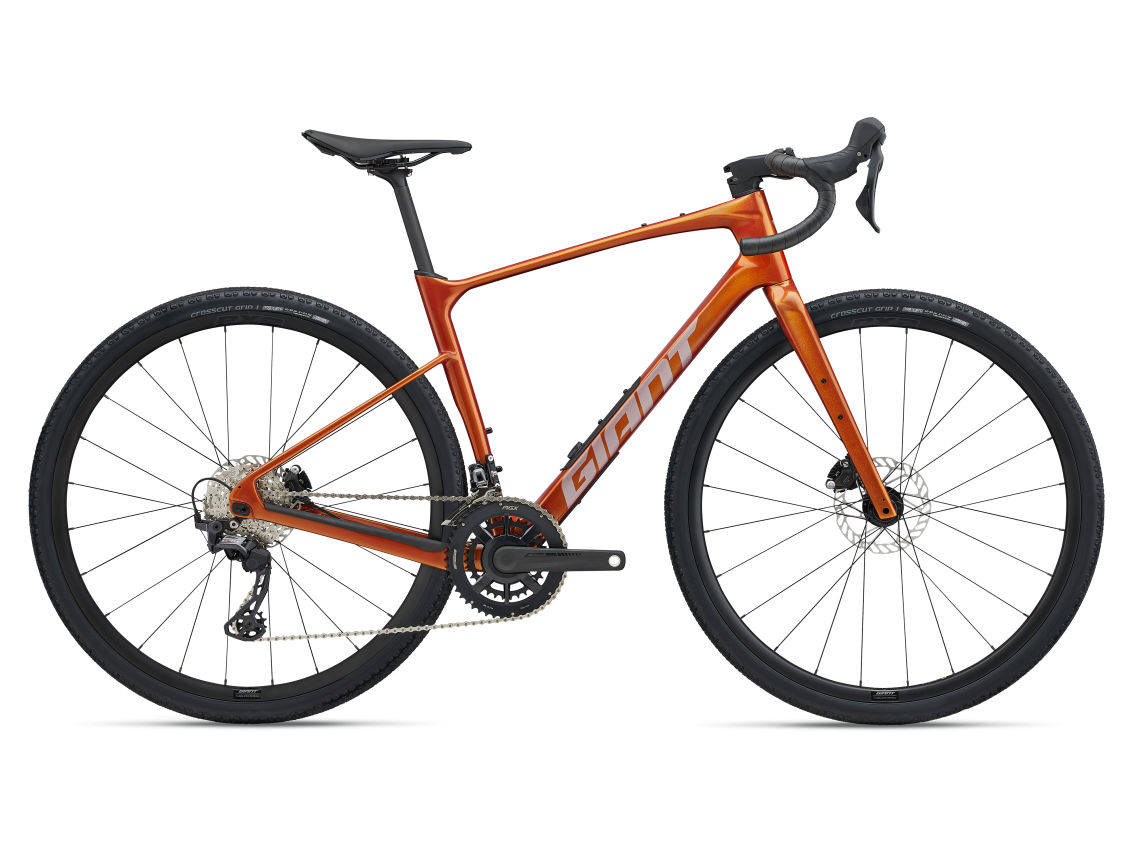

Giant Revolt advanced 1 2025

Giant Revolt advanced 1 2025

c

Geometry

  XS S XS M S M ML ML L L XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 345 456 448 362 349 354 428 394 400 381 404
Stack 467 622 656 488 580 640 719 586 628 581 613
Top Tube (effective) 469 608 501 511 500 515 667 510 496 591 678
Seat Tube C-T 389 518 425 383 472 428 452 509 580 610 594
Head Angle 83 68 72 58 57 71 75 85 73 86 68
Seat Angle 86 85 71 82 84 68 75 80 70 61 86
Head Tube 143 115 124 123 136 150 165 153 186 154 221
Chainstay 485 431 423 367 463 393 453 481 388 427 372
Wheelbase 1042 936 1210 1108 975 1002 919 1184 1182 1027 1008
Standover 716 782 681 637 766 799 901 876 928 727 758
BB Drop 74 70 94 76 77 74 89 67 96 90 91
Fork Rake / Offset 54 50 50 45 47 43 50 49 57 51 56
Trail 67 61 77 85 76 59 64 53 79 61 68
Wheel Size 700c 700c 700c 700c 700c 700c 700c 700c 700c 700c 700c
Handlebar Width 362 469 368 400 357 357 499 378 514 491 465
Stem Length 57 70 49 75 69 94 91 78 66 93 98
Crank Length 166 155 158 157 152 147 165 204 201 179 206
Data Source Retailer Retailer Retailer Retailer Retailer Retailer Retailer Retailer Retailer Retailer Retailer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
