Geometry

  50CM 52CM 54CM 56CM 58CM 60CM
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 351 400 340 380 369 382
Stack 533 471 438 554 690 694
Top Tube (effective) 516 503 535 576 535 705
Seat Tube C-C 522 458 590 559 552 529
Head Angle 65 64 74 74 75 59
Seat Angle 85 65 66 61 76 71
Head Tube 72 98 141 136 197 203
Chainstay 398 395 482 502 492 368
Wheelbase 1017 959 1201 963 1145 948
Front Centre 511 575 672 498 650 637
Standover 787 925 862 839 873 1011
BB Drop 56 56 68 75 65 70
Fork Rake / Offset 42 47 46 49 45 43
Fork Length (A2C) 394 403 334 446 355 343
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

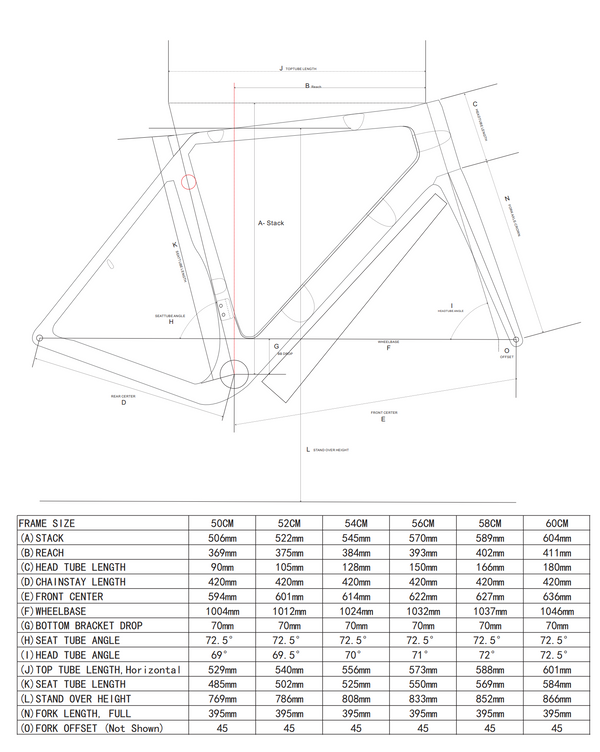

Image showing geometry measurements

Also! Search by Stack and Reach

You can now search the database by numbers.

Find bikes that match your geometry criteria.
