Geometry

  XS S M
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 423 404 352
Stack 580 537 526
Top Tube (effective) 508 457 597
Seat Tube C-T 388 406 578
Head Angle 64 80 79
Seat Angle 69 78 69
Head Tube 47 63 67
Chainstay 387 401 338
Wheelbase 1025 888 926
Standover 634 659 843
BB Drop 64 76 63
Fork Rake / Offset 36 50 53
Wheel Size 707 696 691
Data Source Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

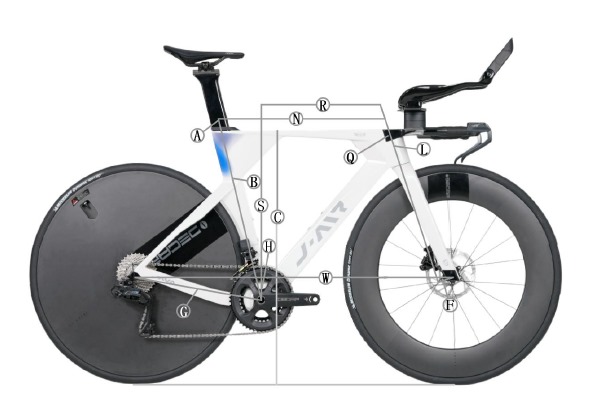

Image showing geometry measurements
