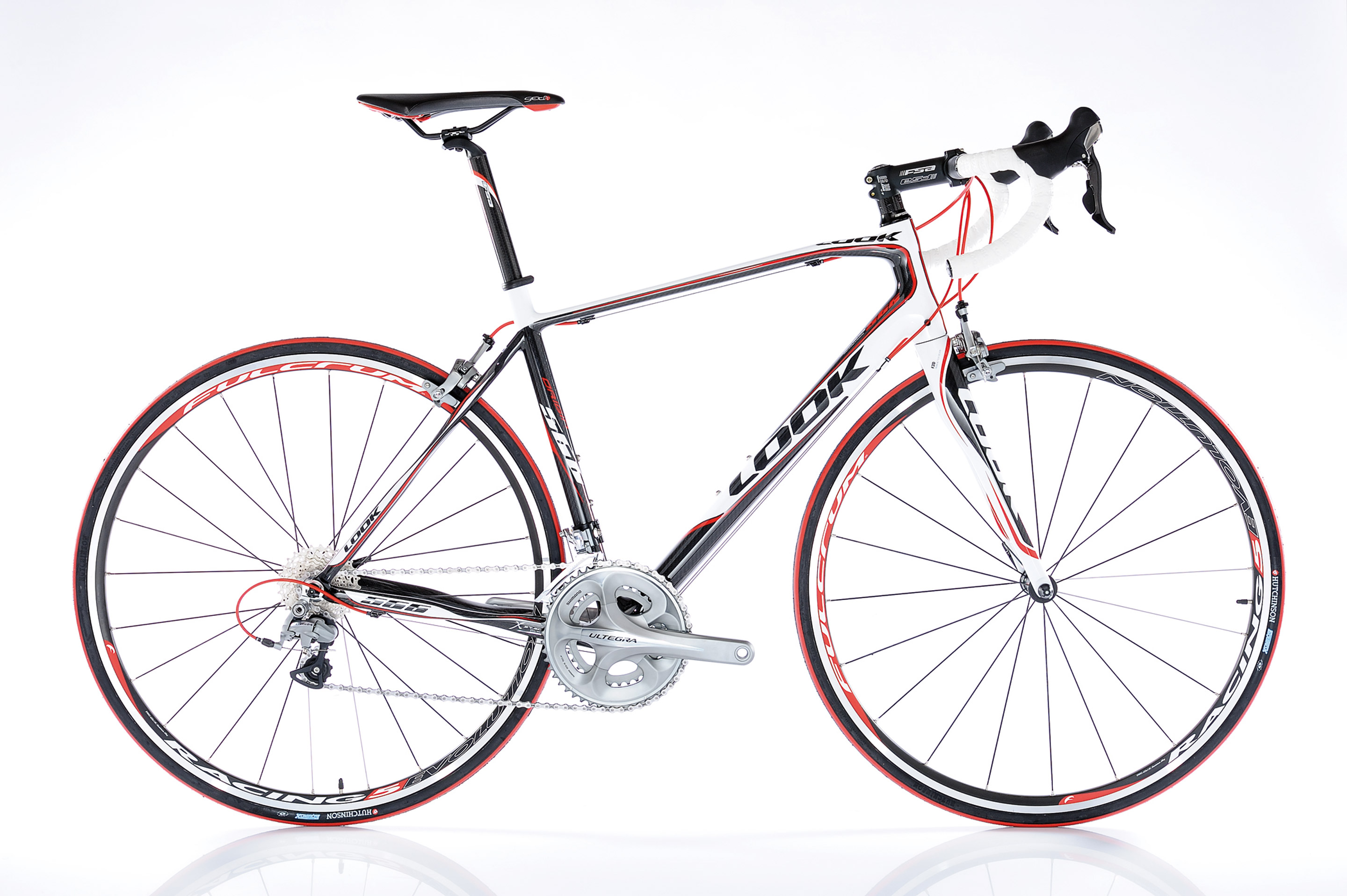

Look 566 2009

Prove Humanity: Please click here to start.

You should not have to do this more than once.
If you continue to see this message, please email hello@[the site's address] for support.

c

Geometry

To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org


Add to Compare
Reach
Top Tube (effective)
Top Tube (actual)
Seat Tube C-T
Seat Tube C-C
Seat Tube (effective)
Head Angle
Seat Angle
Head Tube
Chainstay
Front Centre
Standover
BB Drop
Fork Rake / Offset
Fork Length (A2C)
Data Source

	49	51	53	55	57
Add to Compare
Reach	417	353	416	365	462
Top Tube (effective)	538	468	493	597	656
Top Tube (actual)	551	474	430	616	494
Seat Tube C-T	515	506	410	536	613
Seat Tube C-C	392	434	524	403	536
Seat Tube (effective)	471	450	543	659	594
Head Angle	59	80	67	64	73
Seat Angle	65	70	66	71	78
Head Tube	115	167	169	173	185
Chainstay	366	358	415	459	457
Front Centre	605	677	554	648	604
Standover	685	878	808	804	664
BB Drop	61	54	73	53	56
Fork Rake / Offset	43	51	50	35	50
Fork Length (A2C)	428	331	319	363	376
Data Source	Manufacturer	Manufacturer	Manufacturer	Manufacturer	Manufacturer

Measurements are in millimeters and degrees.
