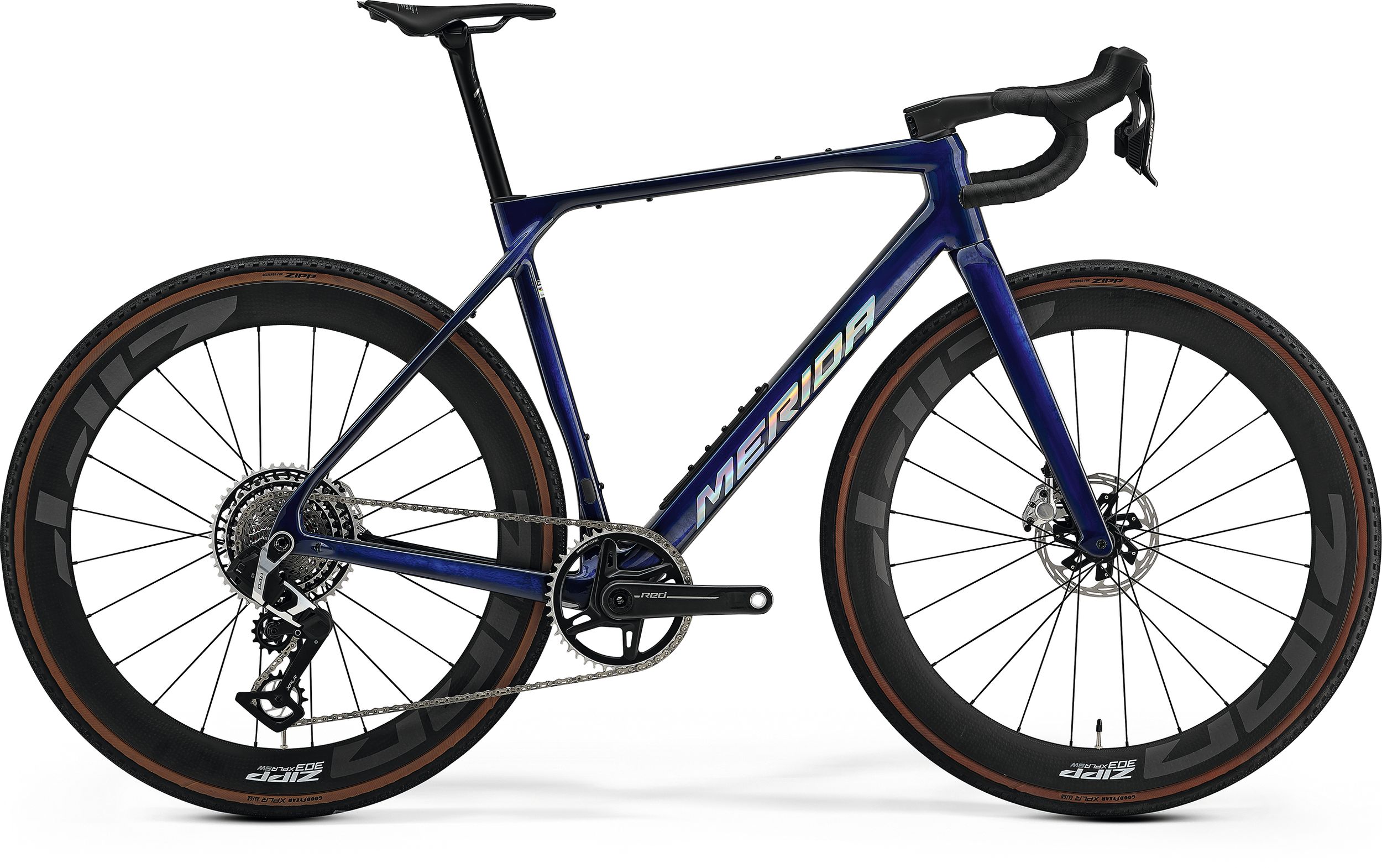

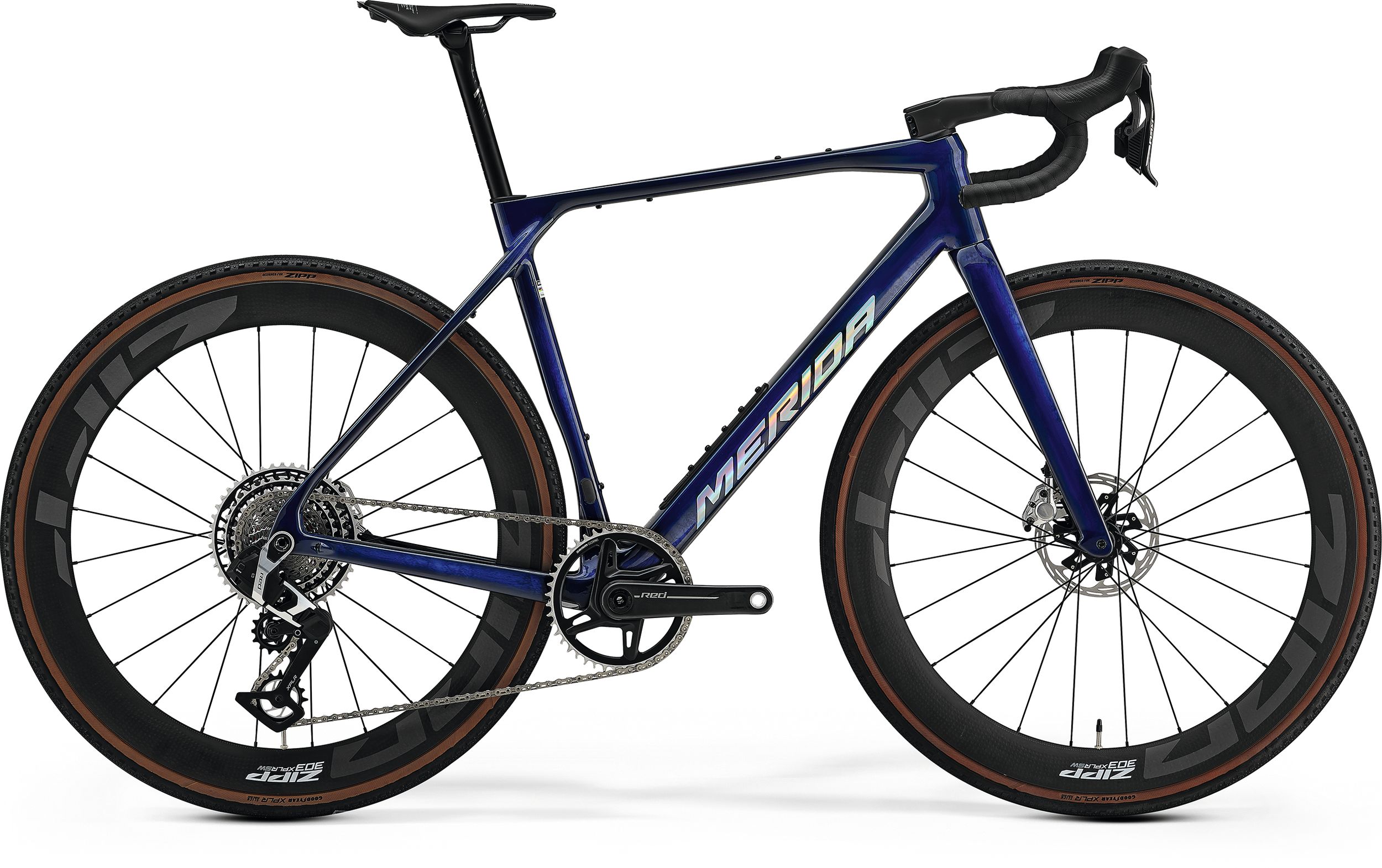

Merida Mission 2026


c

Geometry

  XXS XS S M L XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 433 364 329 368 389 401
Stack 598 500 536 621 698 638
Top Tube (effective) 511 592 592 519 494 488
Seat Tube C-T 503 426 517 481 591 533
Head Angle 67 75 74 67 71 80
Seat Angle 69 85 78 73 65 86
Head Tube 112 119 108 121 161 190
Chainstay 465 417 404 436 459 344
Wheelbase 1145 1160 1054 886 830 874
BB Drop 84 83 69 69 58 81
BB Type BSA BSA BSA BSA BSA BSA
Fork Rake / Offset 43 38 52 38 53 49
Fork Length (A2C) 414 382 479 354 411 379
Seatpost Diameter 26 28 26 30 29 24
Wheel Size 700C 700C 700C 700C 700C 700C
Stem Length 74 83 82 108 123 122
Crank Length 135 149 188 160 197 198
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
