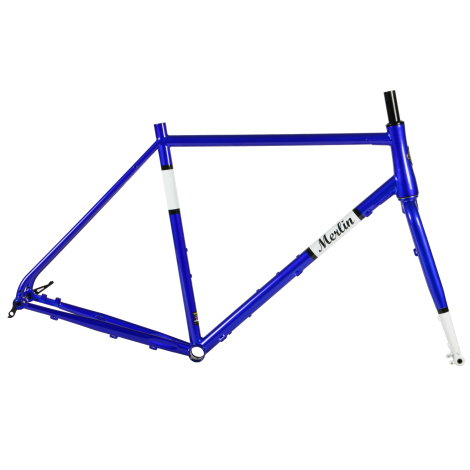

Merlin Merlin All-Road Steel Gravel 1X 2023


c

Geometry

  47 50 53 56 59
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 455 360 348 337 351
Top Tube (effective) 440 459 449 463 630
Seat Tube C-T 445 405 626 610 587
Head Angle 56 78 70 77 72
Seat Angle 84 69 75 73 73
Head Tube 124 144 150 144 173
Wheelbase 888 973 835 991 849
BB Drop 75 75 70 62 66
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
