Geometry

  49 52 54 56 58 61
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 328 419 424 327 418 434
Stack 447 617 581 664 540 722
Top Tube (effective) 500 623 437 635 535 636
Seat Tube C-T 469 546 434 466 446 455
Head Angle 83 59 69 85 63 67
Seat Angle 66 63 85 77 77 74
Head Tube 109 111 113 165 191 219
Chainstay 364 328 337 486 337 387
Front Centre 570 477 595 671 658 507
BB Drop 80 65 81 63 83 71
Fork Rake / Offset 41 46 41 53 52 49
Fork Length (A2C) 341 334 409 382 312 320
Front Mech 871 844 906 879 1148 937

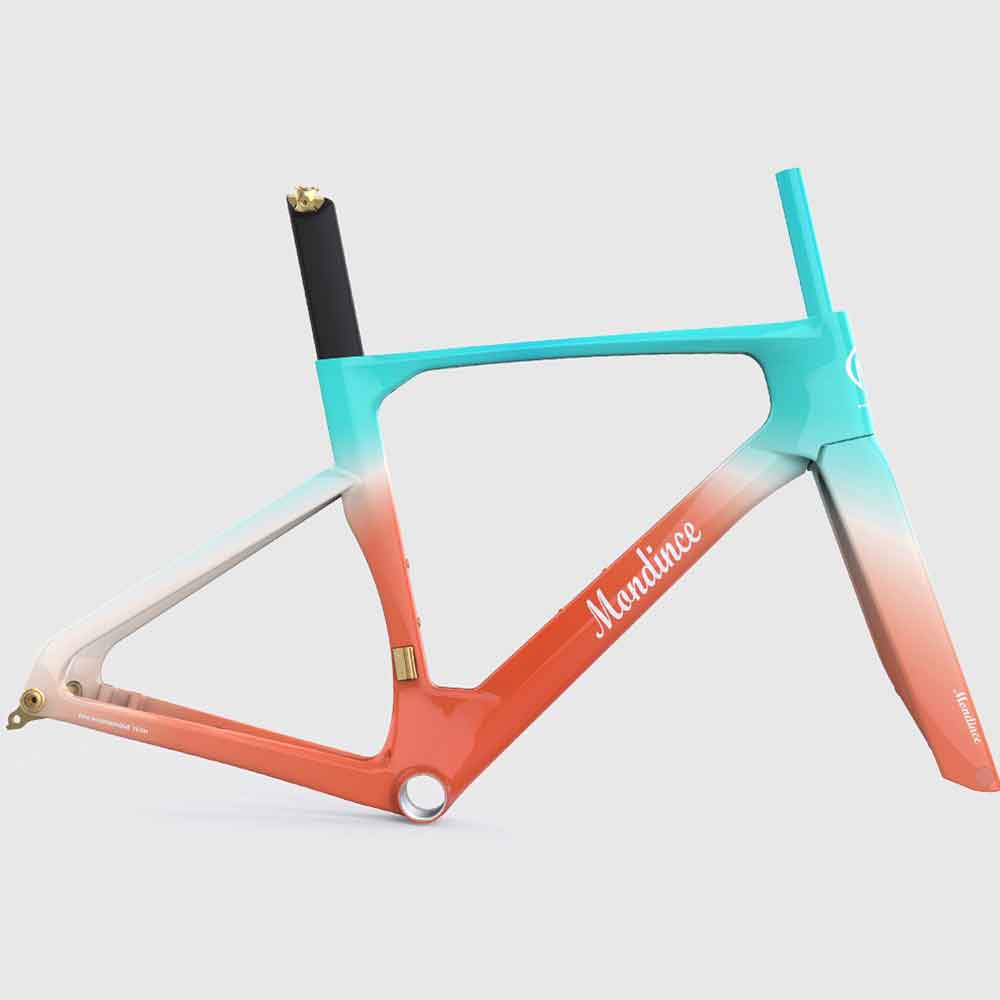

Data Source 2026 Super Light Monocoque EPS T1100 Carbon Fiber AERO Road Bike Frame FM126 2026 Super Light Monocoque EPS T1100 Carbon Fiber AERO Road Bike Frame FM126 2026 Super Light Monocoque EPS T1100 Carbon Fiber AERO Road Bike Frame FM126 2026 Super Light Monocoque EPS T1100 Carbon Fiber AERO Road Bike Frame FM126 2026 Super Light Monocoque EPS T1100 Carbon Fiber AERO Road Bike Frame FM126 2026 Super Light Monocoque EPS T1100 Carbon Fiber AERO Road Bike Frame FM126

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

Image showing geometry measurements
