Geometry
| 50 | 53 | 55 | 57 | 59 | |
|---|---|---|---|---|---|
| Add to Compare | |||||
| Reach | 420 | 346 | 451 | 401 | 355 |
| Stack | 594 | 570 | 598 | 681 | 734 |
| Top Tube (effective) | 517 | 562 | 522 | 470 | 483 |
| Seat Tube C-C | 455 | 445 | 574 | 609 | 670 |
| Head Angle | 79 | 78 | 79 | 69 | 66 |
| Seat Angle | 87 | 84 | 76 | 73 | 63 |
| Head Tube | 132 | 132 | 147 | 189 | 164 |
| Chainstay | 487 | 411 | 376 | 458 | 489 |
| Wheelbase | 1158 | 1118 | 1103 | 1209 | 1140 |
| Front Centre | 509 | 620 | 514 | 518 | 718 |
| BB Drop | 64 | 62 | 80 | 83 | 63 |
| BB Type | BSA | BSA | BSA | BSA | BSA |
| Fork Rake / Offset | 50 | 54 | 55 | 48 | 49 |
| Fork Length (A2C) | 445 | 462 | 430 | 339 | 412 |
| Seatpost Diameter | 24 | 31 | 26 | 25 | 21 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C |
| Tyre Max Width | 52 | 51 | 38 | 51 | 39 |
| Data Source | Manufacturer | Manufacturer | Manufacturer | Manufacturer | Manufacturer |

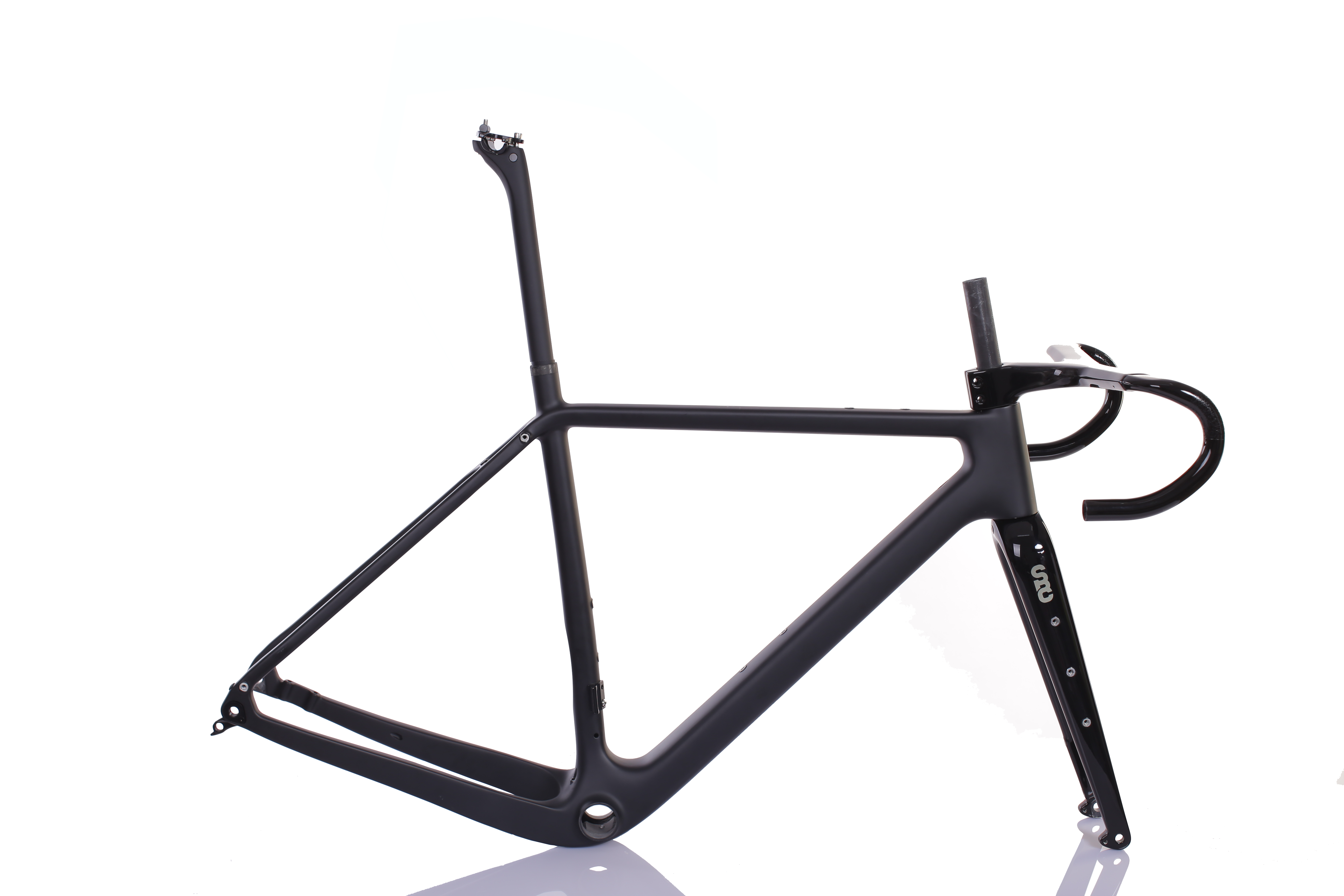

Note: UDH Hanger Fully Internal Cable Max 45MM Tire Carbon Fiber Gravel Bike Frameset FM266
Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
