Geometry

  S M L XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 436 448 467 428
Stack 544 608 568 534
Top Tube (effective) 544 501 457 565
Top Tube (actual) 523 464 560 503
Seat Tube C-T 550 493 551 636
Seat Tube C-C 540 546 479 604
Head Angle 72 78 75 63
Seat Angle 77 62 67 70
Head Tube 137 154 161 149
Chainstay 352 436 442 380
Data Source Retailer Retailer Retailer Retailer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

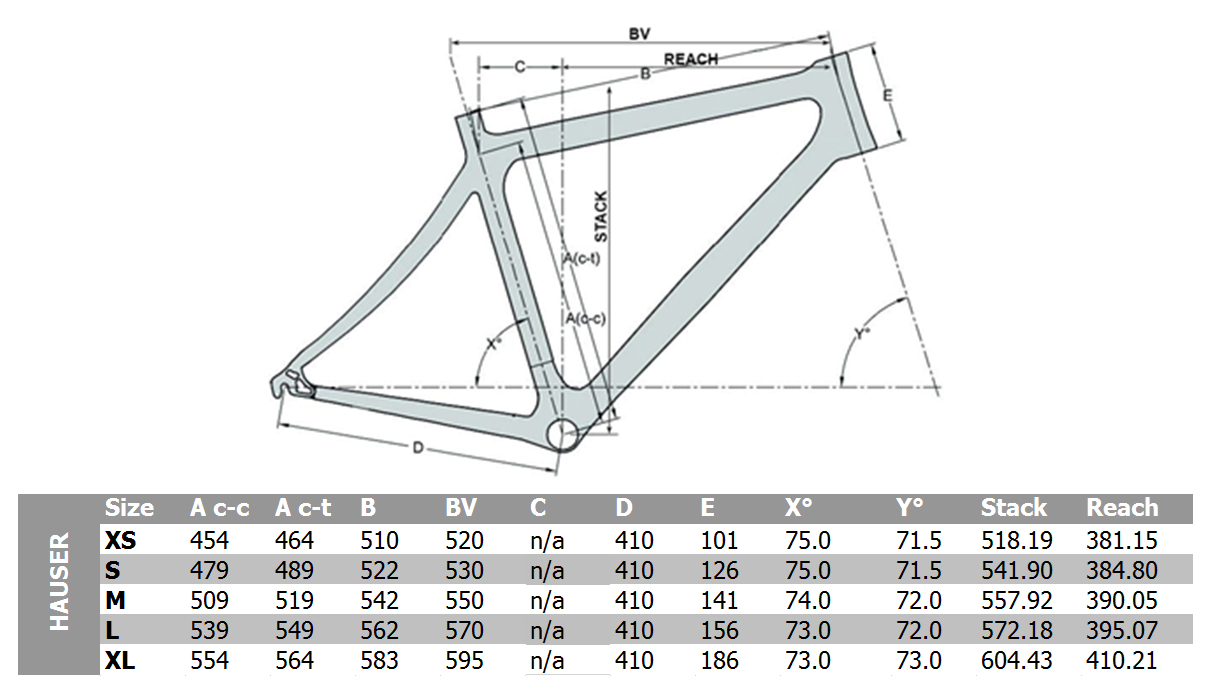

Image showing geometry measurements
