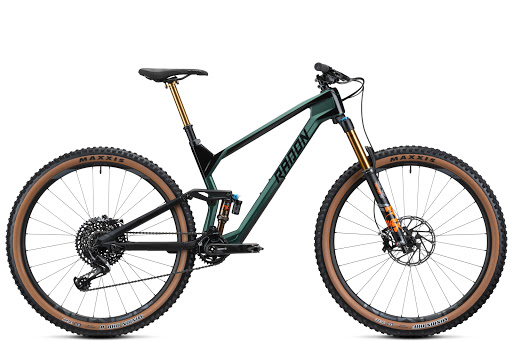

Radon Slide Trail 10 2020

Prove Humanity: Please click here to start.

You should not have to do this more than once.
If you continue to see this message, please email hello@[the site's address] for support.

c

Geometry

To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org

	S	M	L	XL
Add to Compare
Reach	484	497	381	575
Stack	505	549	510	711
Top Tube (effective)	626	529	693	549
Seat Tube C-T	413	449	543	519
Head Angle	65.6 - 66.6	65.6 - 66.6	65.6 - 66.6	65.6 - 66.6
Seat Angle	75,5°/76.5°	75,5°/76.5°	75,5°/76.5°	75,5°/76.5°
Head Tube	86	108	101	127
Chainstay	419	452	411	408
Wheelbase	1191	1166	1075	1151
Standover	852	788	848	864
BB Drop	25 - 11	25 - 11	25 - 11	25 - 11
Seatpost Diameter	35	34	36	34
Wheel Size	30	28	24	25
Tyre Max Width	2	1	2	2
Seatpost Length	28	31	30	34
Handlebar Width	897	674	684	802
Stem Length	58	51	41	43
Crank Length	172	157	162	137
Front Travel	132	171	136	145
Rear Travel	133	137	128	120
Shock Size	185x55	185x55	185x55	185x55
Frame Weight	13.90kg	13.90kg	13.90kg	13.90kg
Data Source	Radon	Radon	Radon	Radon

Measurements are in millimeters and degrees.

Problem? Flag for Review or

Image showing geometry measurements
