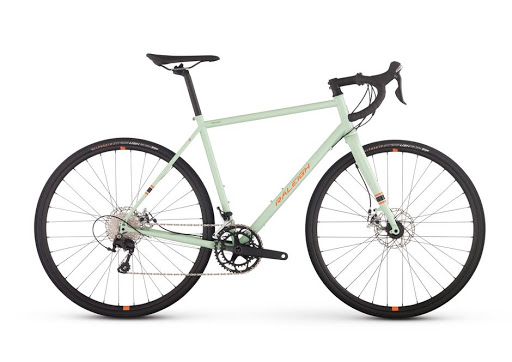

Raleigh Tamland 1 2017


c

Geometry

  52cm 54cm 56cm 58cm 60cm 62cm
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 436 419 306 322 426 432
Stack 648 597 639 674 561 703
Top Tube (effective) 601 597 486 499 645 661
Seat Tube C-T 490 471 470 590 471 606
Head Angle 77 81 57 81 79 73
Seat Angle 64 59 73 64 66 68
Head Tube 118 143 183 195 178 184
Chainstay 387 447 521 511 430 521
Wheelbase 1080 1042 1000 1087 1187 869
Standover 730 756 931 759 898 829
BB Drop 65 77 88 73 74 62
Fork Rake / Offset 49 60 42 60 56 60
Seatpost Length 0 0 0 0 0 0
Handlebar Width 42 34 41 51 43 37
Stem Length 102 77 107 83 130 122
Crank Length 177 150 178 188 179 180
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
