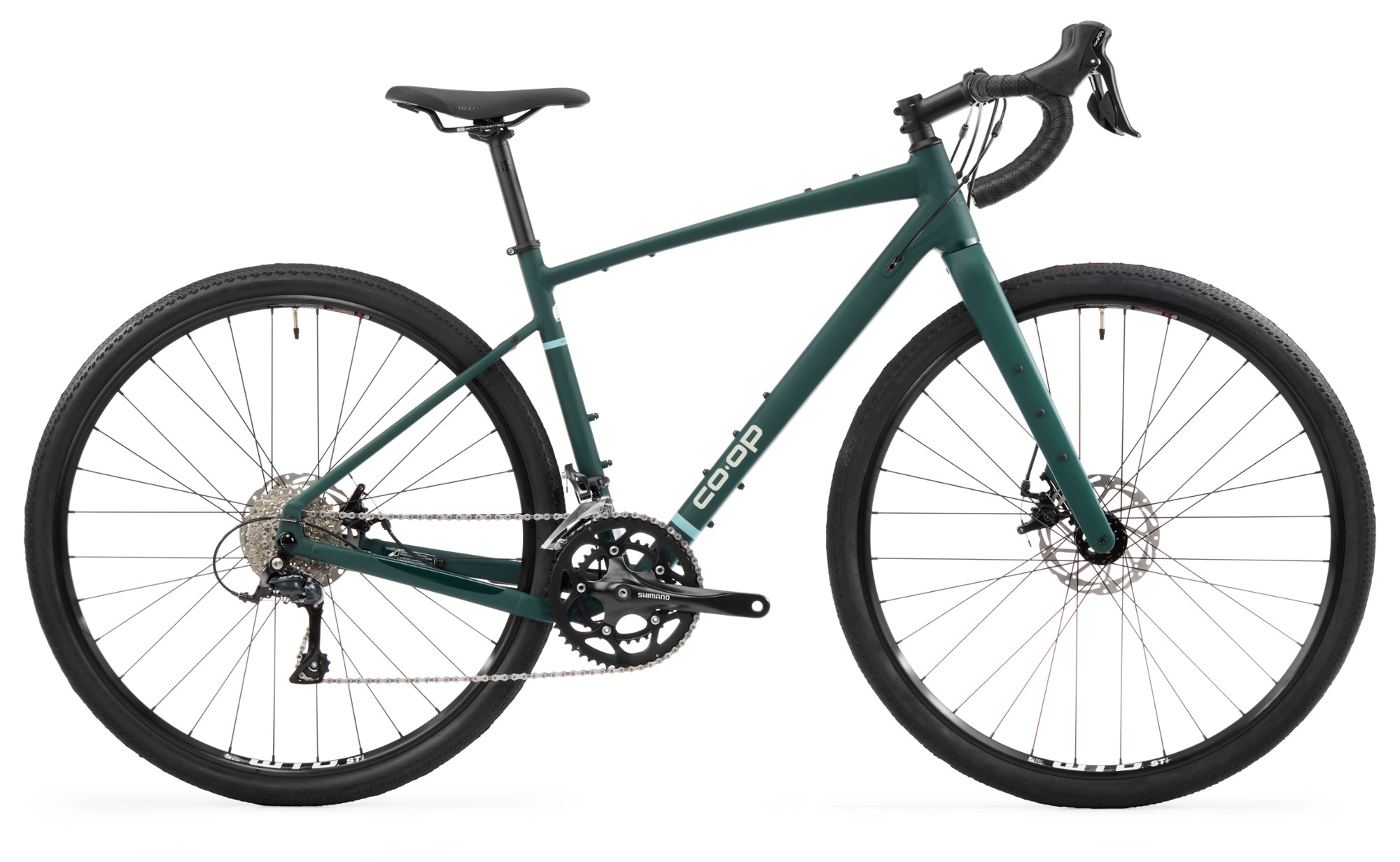

REI ADV 2.1 2024


c

Geometry

  XS S M L XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 393 337 322 364 376
Stack 555 529 655 638 508
Top Tube (effective) 455 480 621 626 701
Seat Tube C-T 335 516 403 458 437
Head Angle 77 78 68 75 72
Seat Angle 82 63 87 63 84
Head Tube 101 118 116 154 157
Chainstay 519 377 417 488 384
Wheelbase 1215 1182 953 1264 1000
Standover 560 750 828 678 956
Rider Height 5'0" - 5'3" 5'3" - 5'6" 5'6" - 5'9" 5'9" - 6'0" 6'0" - 6'3"
Saddle Height 75 81 72 71 60
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

Image showing geometry measurements
