Geometry

  Size S Size M Size L Size XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 397 524 491 514
Stack 742 546 666 617
Top Tube (effective) 542 708 547 651
Seat Tube C-T 370 372 420 443
Head Angle 74 61 77 73
Seat Angle 65 71 66 91
Head Tube 123 130 128 135
Chainstay 396 485 412 370
Wheelbase 1188 1361 1031 1441
BB Drop 32 38 41 30
BB Height 374
Fork Rake / Offset 45 48 40 48
Fork Length (A2C) 552 527 582 560
Seatpost Diameter 31 32 33 32
Wheel Size 29" 29" 29" 29"
Stem Length 42 44 55 63
Front Travel 161 161 124 120
Rear Travel 151 148 126 104
Data Source Manufacturer online Manufacturer online Manufacturer online Manufacturer online

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

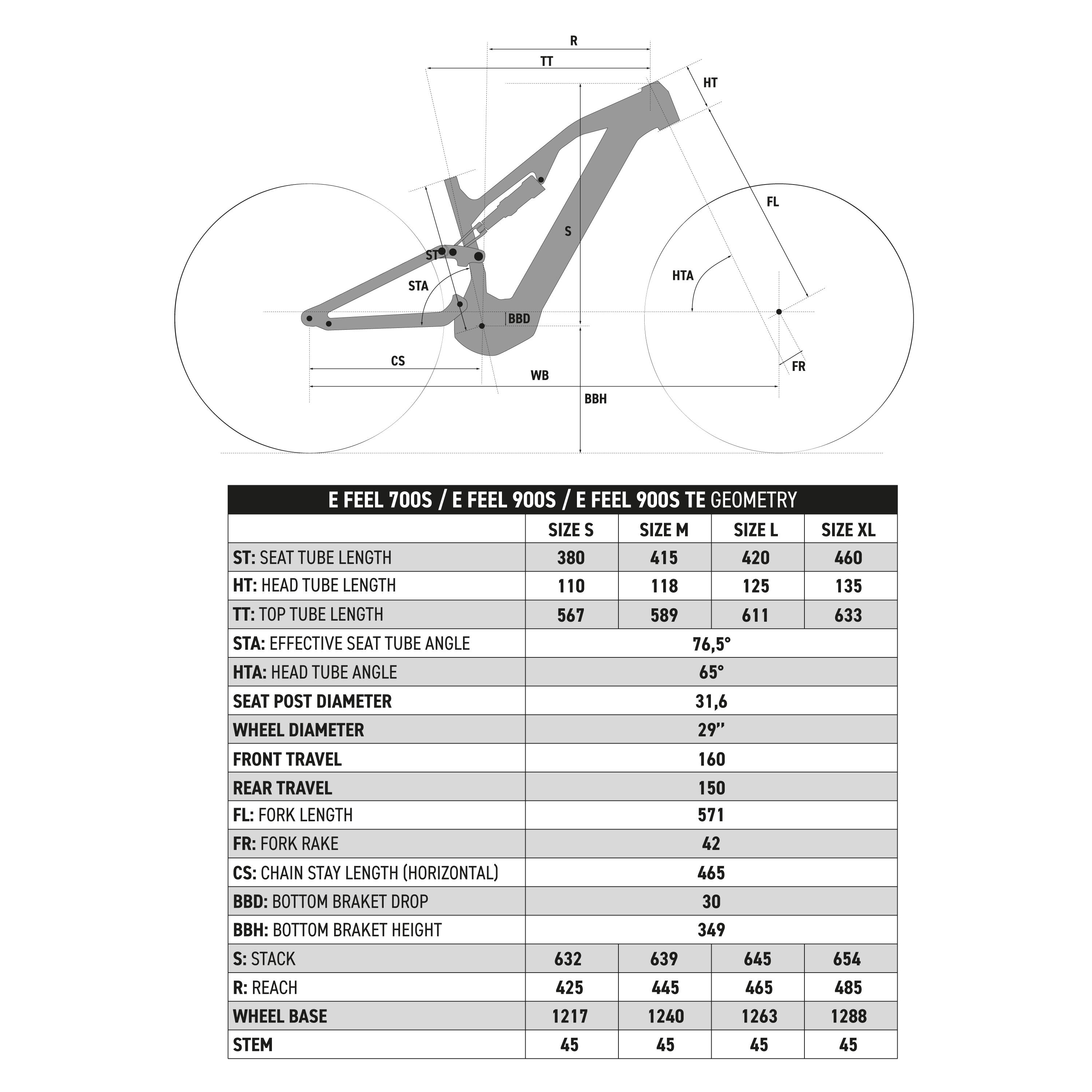

Image showing geometry measurements
