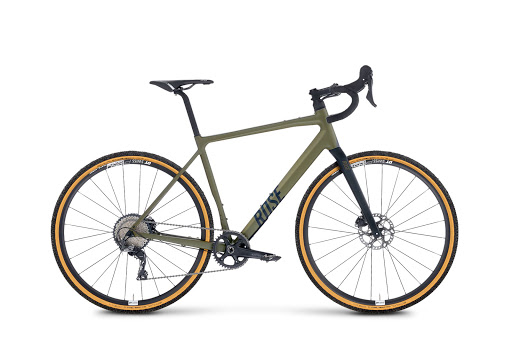

Geometry

  46 49 51 53 55 57 59 61 64
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 351,5 355,5 363,5 368,5 373,5 328 458 434 409,5
Stack 534,5 615 551,5 566,5 691 615 533 718 642,5
Top Tube (effective) 520 448 475 476 552 556 595 685 508
Seat Tube C-T 415 382 490 535 515 457 436 535 569
Head Angle 69,5 69,5 74 70,5 70,5 75 71,25 71,5 76
Seat Angle 68 74,5 74,25 61 73,25 73,5 73,5 73,25 61
Head Tube 125 96 125 164 163 158 188 231 219
Chainstay 349 479 387 448 480 363 515 393 410
Wheelbase 932 1008,7 1016,2 1021,7 1143 1041,9 1052,2 912 1202
Front Centre 582,5 679 611 601,5 611,05 621,5 630,5 575 540
Standover 742 671 703 625 698 887 967 992 1031
BB Drop 78 82 62 67 74 64 74 66
Fork Rake / Offset 58 43 54 56 58 49 46 41 48
Fork Length (A2C) 435 478 355 371 449 331 471 401 404,2
Seatpost Diameter 27,2 27,2 27,2 27,2 27,2 27,2 27,2 27,2 27,2
Wheel Size 650b 650b 700c 700c 700c 700c 700c 700c 700c
Tyre Max Width 50 (650b) 50 (650b) 45 (700c) 45 (700c) 45 (700c) 45 (700c) 45 (700c) 45 (700c) 45(700c)
Stem Length 82 75 93 109
Crank Length 144 203 169 204
Bike Weight 10 10
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
