Geometry

  S M L XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 419 466 364 450
Stack 580 568 716 612
Top Tube (effective) 476 480 541 718
Seat Tube C-T 457 379 555 406
Head Angle 66° 66° 66° 66°
Seat Angle 75° 75° 75° 75°
Head Tube 123 118 109 103
Chainstay 415 514 485 419
Wheelbase 1136 1341 1363 1229
Standover 727/749 741/751 754/756 767/767
BB Drop -3 -4 -4 -3
BB Height 407 371 389 344
Wheel Size 27 22 29 26
Front Travel 175 128 155 159
Rear Travel 189 143 134 153
Rider Height 163-172 173-182 183-192 >193
Data Source Manufacturer Manufacturer Manufacturer Manufacturer

Note: Recommended rear sag 30% (19mm). Standover measured 100m from BB.

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

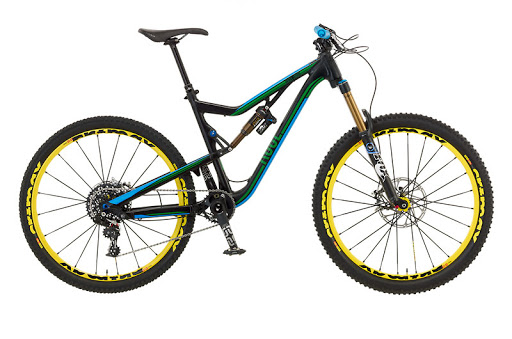

Image showing geometry measurements
