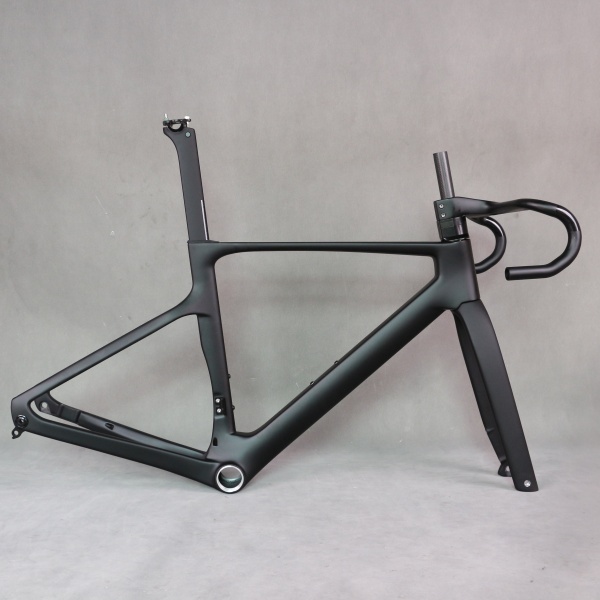

Seraph TT-R18 2024


c

Geometry

  XS S M L XL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 415 440 444 417 454
Stack 437 495 528 494 602
Top Tube (effective) 451 449 516 563 621
Seat Tube C-T 431 411 466 421 630
Head Angle 74 68 86 70 66
Seat Angle 79 71 64 63 83
Head Tube 88 131 146 147 187
Chainstay 349 458 440 374 363
Wheelbase 792 865 807 1070 831
Front Centre 508 601 527 571 626
Standover 670 706 707 905 937
BB Drop 72 78 65 67 77
BB Type T47 T47 T47 T47 T47
Fork Rake / Offset 38 40 41 40 51
Fork Length (A2C) 437 361 362 429 430
Wheel Size 700C 700C 700C 700C 700C
Tyre Max Width 33 31 38 32 35
Seatpost Length 382 412 285 395 413
Rider Height 172-182 178-188 172-182 178-188 185-195
Frame Weight 928 1153
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
