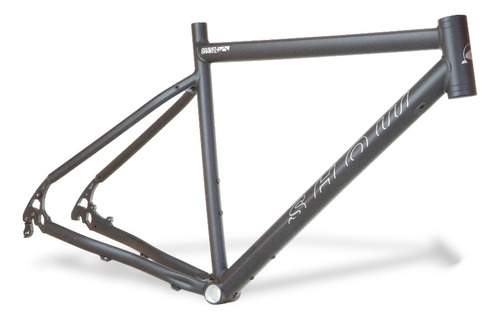

Show Gravel 2024
Prove Humanity: Please click here to start.
You should not have to do this more than once.
If you continue to see this message, please email hello@[the site's address] for support.
Geometry
| P | M | G | GG | |
|---|---|---|---|---|
| Add to Compare | ||||
| Reach | 316 | 404 | 432 | 406 |
| Stack | 472 | 572 | 591 | 613 |
| Top Tube (effective) | 488 | 459 | 651 | 514 |
| Seat Tube C-T | 527 | 422 | 636 | 676 |
| Head Angle | 82 | 60 | 74 | 72 |
| Seat Angle | 85 | 76 | 79 | 78 |
| Head Tube | 124 | 148 | 146 | 198 |
| Chainstay | 447 | 513 | 358 | 494 |
| Wheelbase | 1221 | 1063 | 1081 | 1131 |
| Front Centre | 474 | 693 | 532 | 588 |
| Standover | 769 | 769 | 714 | 717 |
| BB Drop | 64 | 63 | 72 | 57 |
| BB Height | 306 | 254 | 258 | 275 |
| BB Type | BSA | BSA | BSA | BSA |
| Fork Rake / Offset | 52 | 41 | 46 | 43 |
| Trail | 83 | 84 | 60 | 88 |
| Fork Length (A2C) | 399 | 331 | ||
| Seatpost Diameter | 22 | 22 | 27 | 31 |
| Wheel Size | 700C | 700C | 700C | 700C |
| Tyre Max Width | 42mm | 42mm | 50mm | 50mm |
| Data Source | Manufacturer | Manufacturer | Manufacturer | Manufacturer |
Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
