Geometry

  S XXL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 386 484
Stack 447 636
Top Tube (effective) 576 621
Seat Tube C-T 475 554
Head Angle 84 59
Seat Angle 79 74
Head Tube 104 178
Chainstay 496 348
Wheelbase 1089 921
Front Centre 625 584
BB Drop 77 74
Fork Rake / Offset 56 57
Trail 74 70
Fork Length (A2C) 414 415
Wheel Size 671 623
Tyre Max Width 55 57
Data Source Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

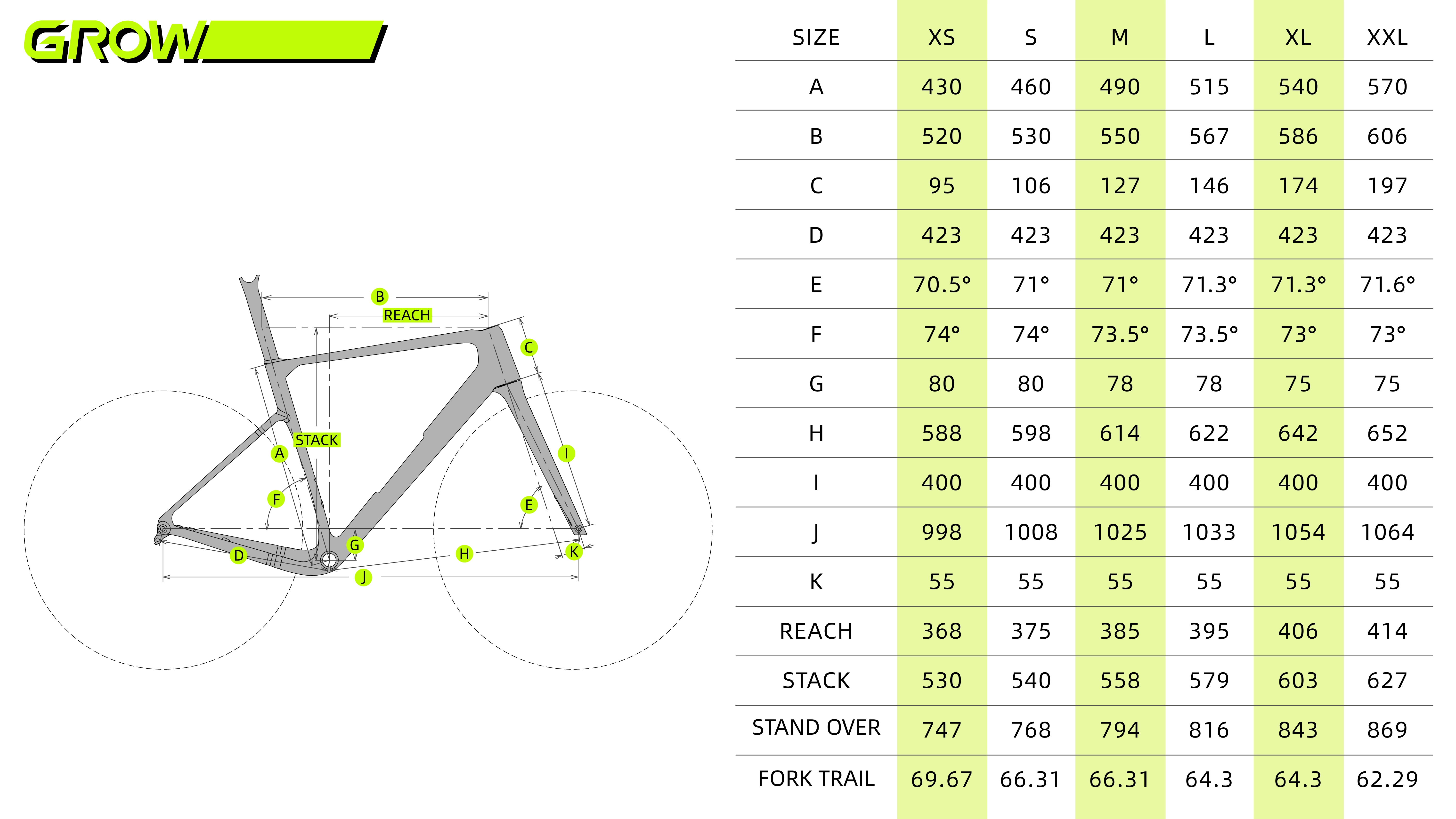

Image showing geometry measurements
