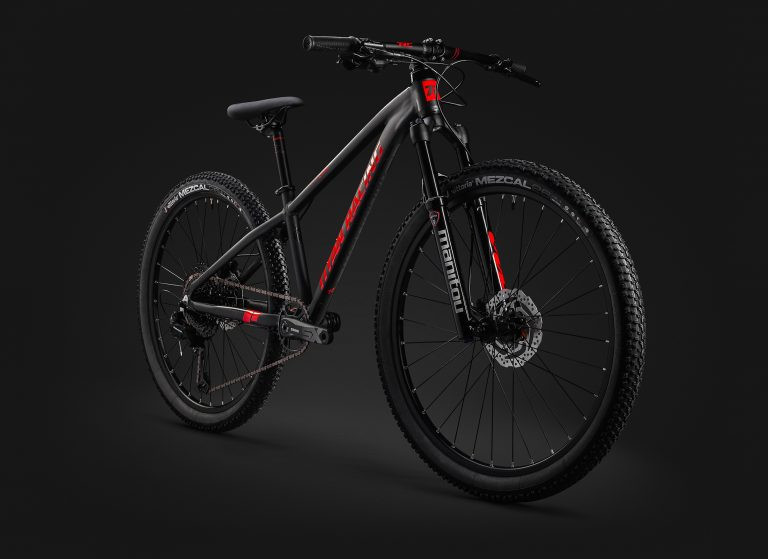

Titan Racing Hades 24 9R Team 2020

Prove Humanity: Please click here to start.

You should not have to do this more than once.
If you continue to see this message, please email hello@[the site's address] for support.

Geometry

To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org

	XS
Add to Compare
Reach	361
Stack	457
Top Tube (effective)	527
Top Tube (actual)	438
Seat Tube C-T	352
Seat Tube C-C	288
Seat Tube (effective)	507
Head Angle	57
Seat Angle	67
Head Tube	91
Chainstay	452
Wheelbase	1160
Front Centre	627
BB Drop	32
BB Height	320
Fork Rake / Offset	27
Trail	87
Fork Length (A2C)	568
Seatpost Diameter	28
Wheel Size	30
Handlebar Width	593
Crank Length	174
Front Travel	104
Data Source	Measured Own Bike

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
