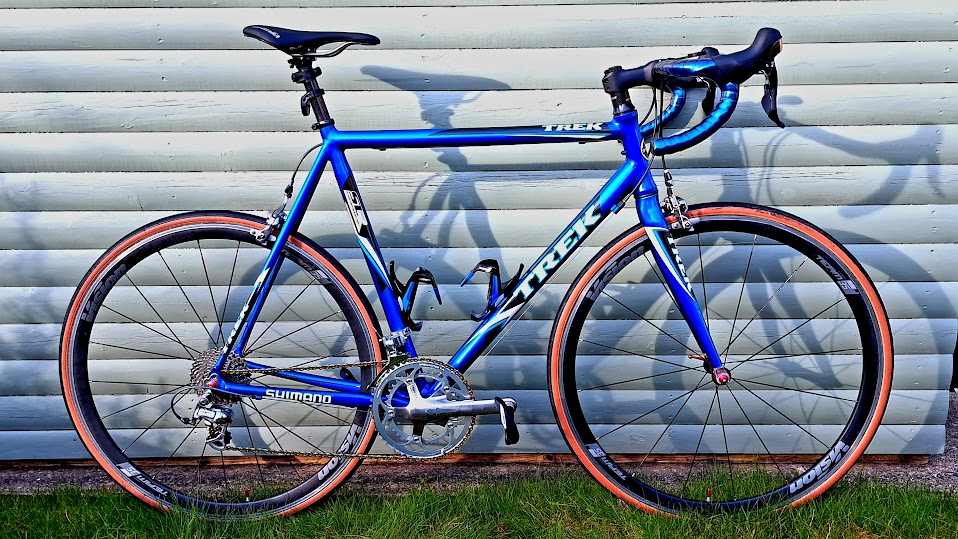

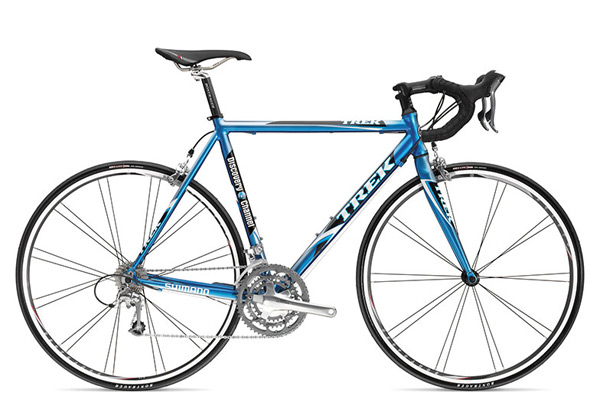

Trek 1500 SLR 2006

Trek 1500 SLR 2006

c

Geometry

  52cm 54cm 56cm 58cm 60cm 63cm
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Top Tube (effective) 462 440 611 629 589 632
Seat Tube C-T 417 533 523 547 487 639
Head Angle 64 85 78 69 58 88
Seat Angle 73 73 70 73 86 86
Head Tube 100 100 124 137 167 204
Chainstay 345 386 339 464 337 461
Wheelbase 1093 927 816 818 893 1144
Standover 852 781 947 712 969 731
BB Height 302 273 267 278 236 258
Fork Rake / Offset 49 40 51 50 53 45
Trail 51 53 51 66 55 41
Fork Length (A2C) 335
Seatpost Diameter 27
Wheel Size 700c 700c 700c 700c 700c 700c
Tyre Max Width 26
Seatpost Length 258
Seatpost Offset 20
Handlebar Width 488
Stem Length 118
Stem Angle +-7
Crank Length 171 202
Seat Clamp 32
Data Source Measured Own Bike Measured Own Bike Measured Own Bike Measured Own Bike Measured Own Bike Measured Own Bike

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
