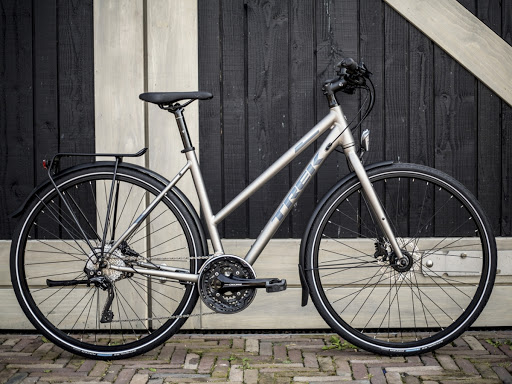

Trek X700 Stagger 2019


c

Geometry

  M L
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 388 380
Stack 642 719
Top Tube (effective) 470 585
Seat Tube C-T 406 489
Head Angle 70.5° 71.0°
Seat Angle 73.0° 73.0°
Head Tube 131 174
Chainstay 443 448
Wheelbase 1004 1136
Standover 699 632
BB Drop 76 72
BB Height 300 244
Fork Rake / Offset 49 38
Trail 78 83
Data Source Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
