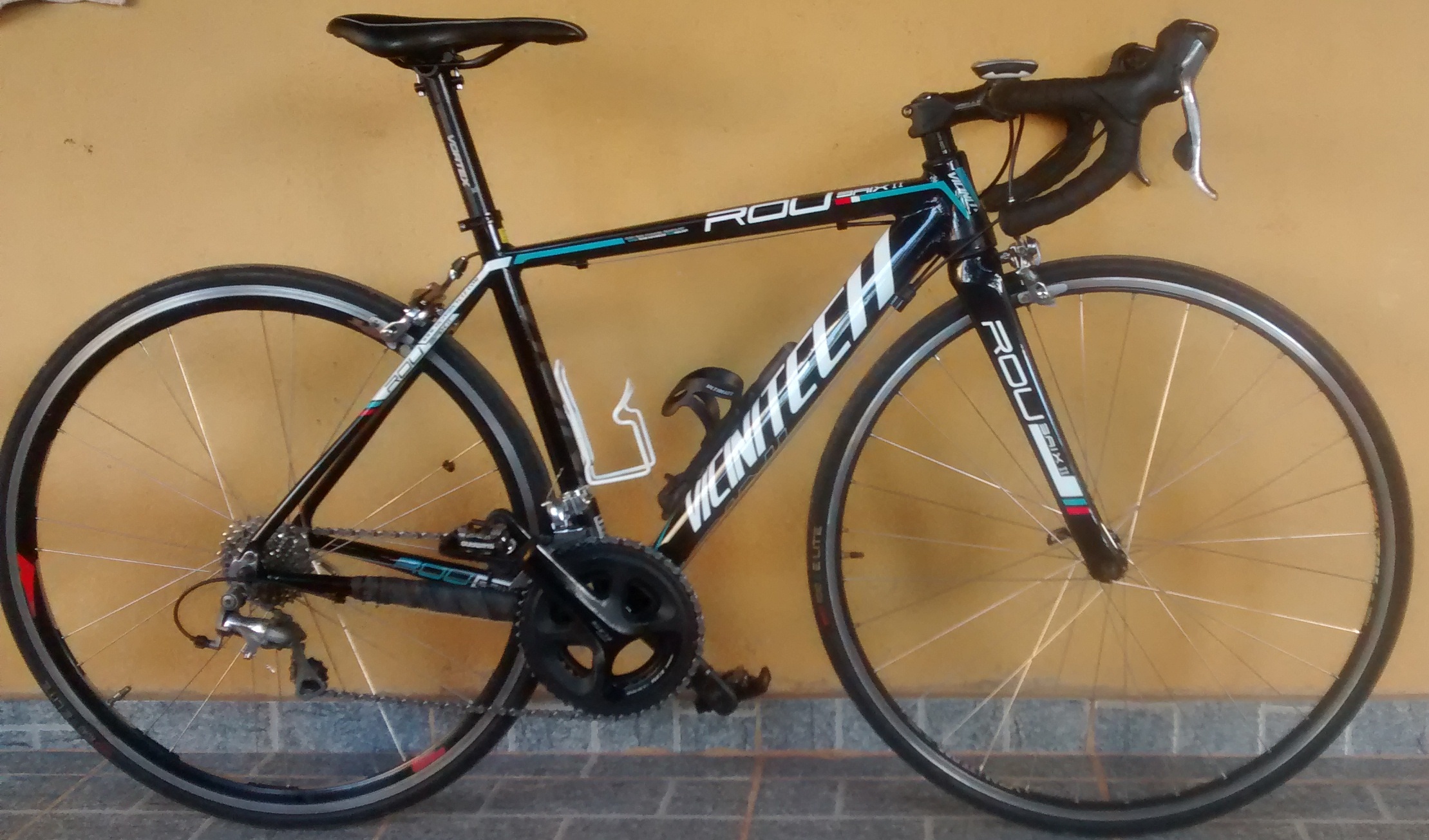

Vicinitech Roubaix II 2017
Prove Humanity: Please click here to start.
You should not have to do this more than once.
If you continue to see this message, please email hello@[the site's address] for support.
Geometry
| Add to Compare |
| Reach |
| Stack |
| Top Tube (effective) |
| Top Tube (actual) |
| Seat Tube C-T |
| Seat Tube C-C |
| Seat Tube (effective) |
| Head Angle |
| Seat Angle |
| Head Tube |
| Chainstay |
| Wheelbase |
| Front Centre |
| BB Drop |
| BB Height |
| BB Type |
| Fork Rake / Offset |
| Trail |
| Fork Length (A2C) |
| Seatpost Diameter |
| Wheel Size |
| Tyre Max Width |
| Crank Length |
| Frame Weight |
| Bike Weight |
| Data Source |
| 48 | |
|---|---|
| Add to Compare | |
| Reach | 465 |
| Stack | 563 |
| Top Tube (effective) | 455 |
| Top Tube (actual) | 476 |
| Seat Tube C-T | 510 |
| Seat Tube C-C | 482 |
| Seat Tube (effective) | 586 |
| Head Angle | 75 |
| Seat Angle | 80 |
| Head Tube | 102 |
| Chainstay | 384 |
| Wheelbase | 931 |
| Front Centre | 581 |
| BB Drop | 79 |
| BB Height | 200 |
| BB Type | BSA |
| Fork Rake / Offset | 37 |
| Trail | 48 |
| Fork Length (A2C) | 405 |
| Seatpost Diameter | 33 |
| Wheel Size | 700C |
| Tyre Max Width | 29 |
| Crank Length | 182 |
| Frame Weight | 1.35 kg |
| Bike Weight | 9.7 kg |
| Data Source | Measured Own Bike |
Measurements are in millimeters and degrees.
