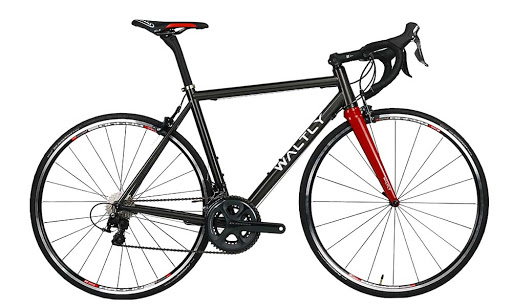

Waltly Dart 2021


c

Geometry

  XXS XS S M L XL XXL
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 390 325 334 411 466 470 325
Stack 485 562 558 649 521 632 495
Top Tube (effective) 504 426 610 579 512 565 698
Seat Tube C-T 501 550 468 469 612 646 476
Head Angle 83 64 60 62 66 62 62
Seat Angle 88 81 87 70 62 85 71
Head Tube 100 123 119 132 188 187 214
Chainstay 357 443 423 331 461 481 396
Wheelbase 853 856 964 1032 1140 1149 998
Front Centre 578 459 528 620 689 546 558
BB Drop 69 77 67 66 81 60 73
Fork Rake / Offset 43 44 37 49 45 48 47
Fork Length (A2C) 397 416 315 408 312 425 338
Data Source Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.
