Geometry

  480 510 540
To view geometry data you must use a web browser that supports JavaScript. See: browser-update.org
Add to Compare
Reach 443 455 429
Stack 534 517 473
Top Tube (effective) 426 603 586
Seat Tube C-T 389 576 600
Head Angle 84 82 72
Seat Angle 74 83 76
Head Tube 77 96 117
Chainstay 400 450 452
Front Centre 466 530 637
BB Drop 64 73 69
Fork Length (A2C) 372 433 327
Data Source Manufacturer Manufacturer Manufacturer

Standard measurements are in millimeters and degrees. The site attempts to recognize and convert other units back to standard - results may vary.

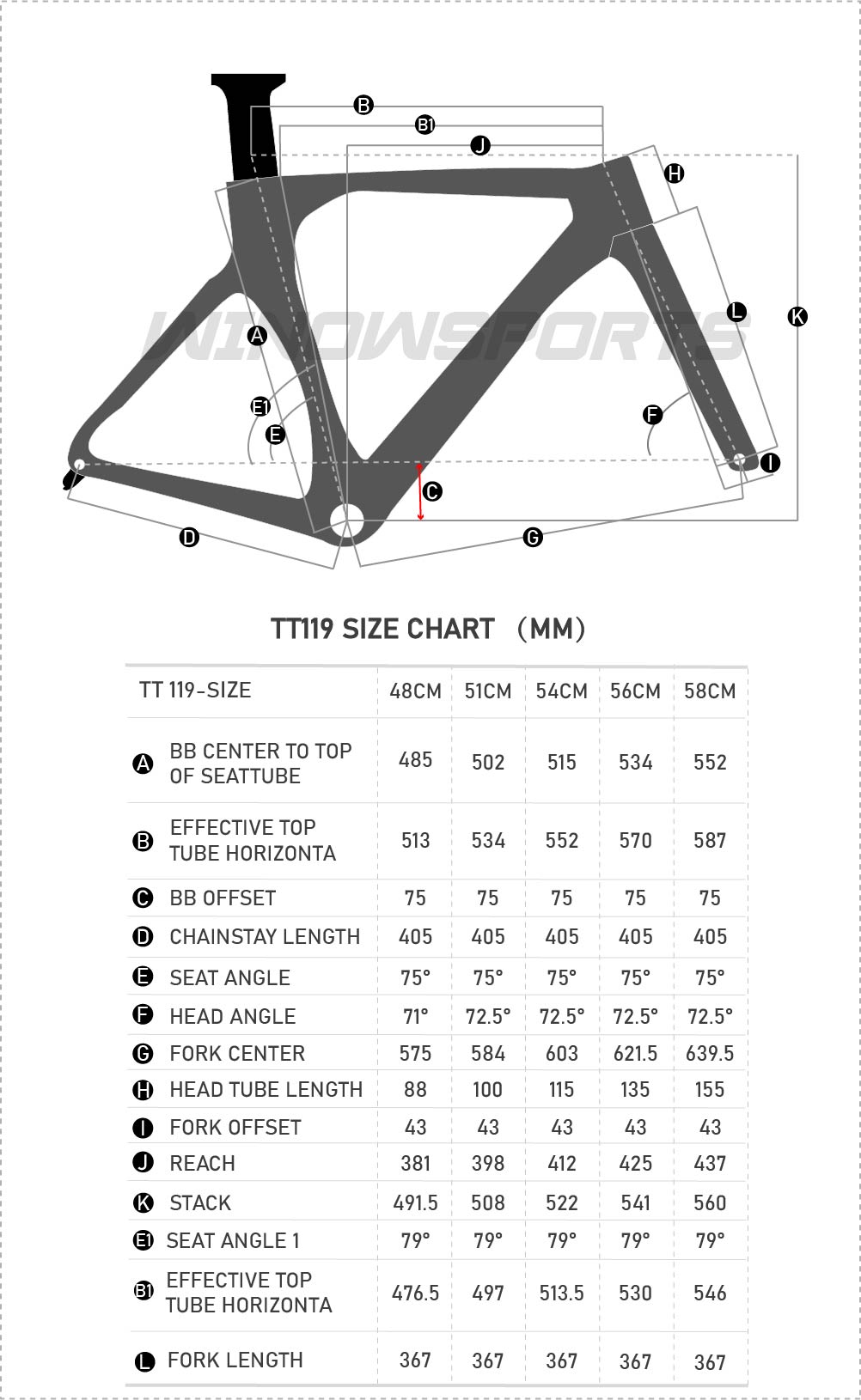

Image showing geometry measurements
